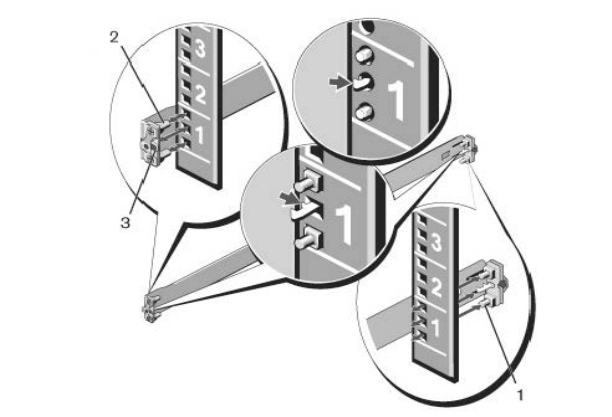

Figure 5. 1U tool-less conguration
2 Align and seat the front ange pegs in the holes on the front side of the vertical post, item 2.
3 Repeat this procedure for the second rail.
4 To remove each rail, pull on the latch release button on each ange ear and unseat each rail, item 3.
Two-post ush-mount installation
1 For this conguration, remove the castings from the front side of each ReadyRails assembly, item 1.
To remove the two screws from each front ange ear on the switch side of the rail and remove each casting, use a Torx screwdriver.
Retain the castings for future rack requirements. It is not necessary to remove the rear ange castings.
Install the S3048–ON
17
