Removing and Installing the Battery and Battery Cable on PERC Controllers 7
3 Place the top edge of the battery over the top edge of the memory module
so that the arms on the side of the battery fit into their sockets on the
memory module. See Figure 3.
CAUTION: Electrostatic discharge can damage sensitive components.
Always use proper antistatic protection when handling components.
Touching components without proper grounding can damage the equipment.

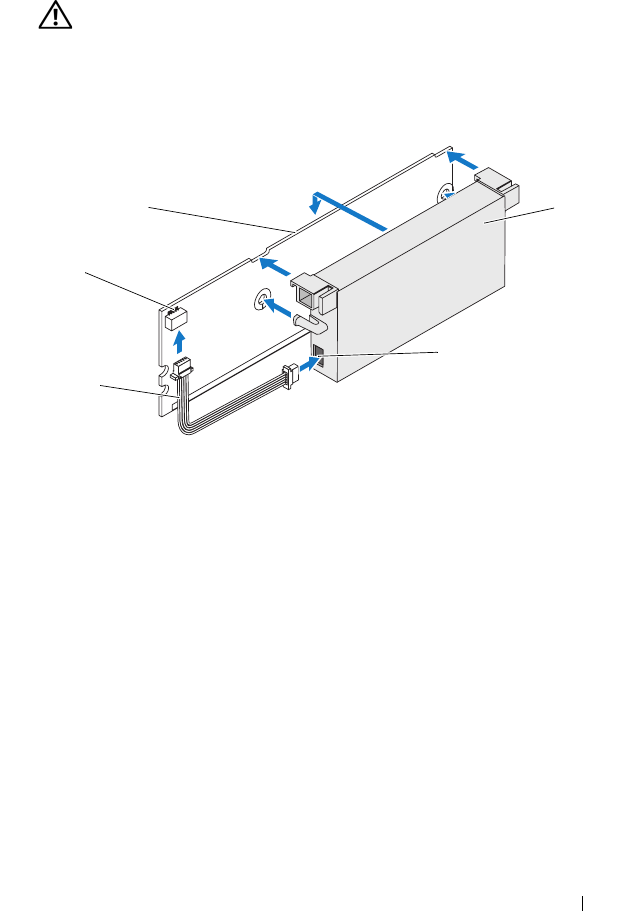

Figure 3. Installing the BBU and Battery Cable
4 Place the PERC x /E Adapter on a flat, clean, and static–free surface.
5 Mount the memory module on the controller memory socket like a
standard DIMM. See the section "Installing the TBBU on a PERC x/E
Adapter" for more information.
The memory module is mounted flush with the board so that the memory
module is parallel to the board when installed.
6 Press the memory module firmly into the memory socket. As you press the
memory module into the socket, the BBU clicks into place, indicating that
the controller is firmly seated in the socket, and the arms on the socket fit
into the notches to hold the memory module securely.
1 memory module 2 connector on the memory module 3 battery cable
4 battery 5 connector on the battery
