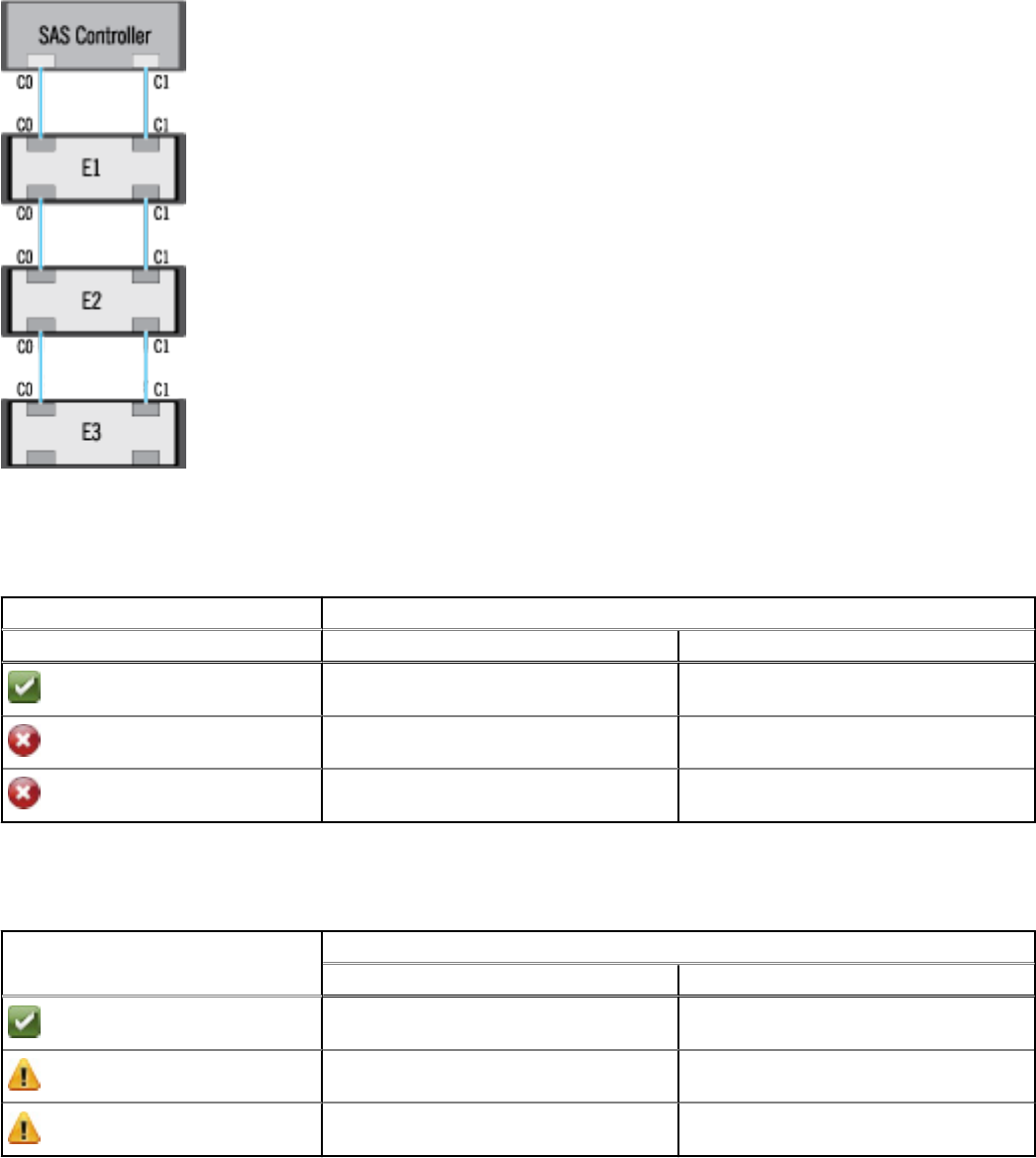

If the communication channel between the connector and the first enclosure is lost, the redundant path configuration is lost. In

this case, the health of the logical connector is displayed as critical. Navigate to the Information/Configuration page of the

logical connector to view details of the Path Health. For a brief outline of this scenario, see the following table:

Table 14. Path between Controller and Enclosure 1

Health of Logical Connector Path between Controller and Enclosure 1

Connector 0 (C0) Connector 1 (C1)

Available Available

Available Disconnected

Disconnected Available

However, if the communication channel between any two enclosures is lost, the redundant path configuration is degraded and

the health of the logical connector is displayed as degraded. For a brief outline of this scenario, see the following table.

Table 15. Path between Enclosure

and Enclosure

Health of Logical Connector Path between Enclosure

and Enclosure

Connector 0 (C0) Connector 1 (C1)

Available Available

Available Disconnected

Disconnected Available

In the above scenario, the enclosure status is displayed in warning mode. Clicking Information/Configuration in the

Enclosures page displays all enclosure components (EMMs, Fans, Physical Disks, Power Supplies, and Temperature) in normal

condition. To view the Path Failure message to indicate that the enclosure has lost a communication path to the controller,

indicating that the enclosure is no longer in redundant path mode.
