Quick Reference Guide

30 Quick Start
Alarm Severity & Count
This panel displays the count of events by severity, and totals them on the right.

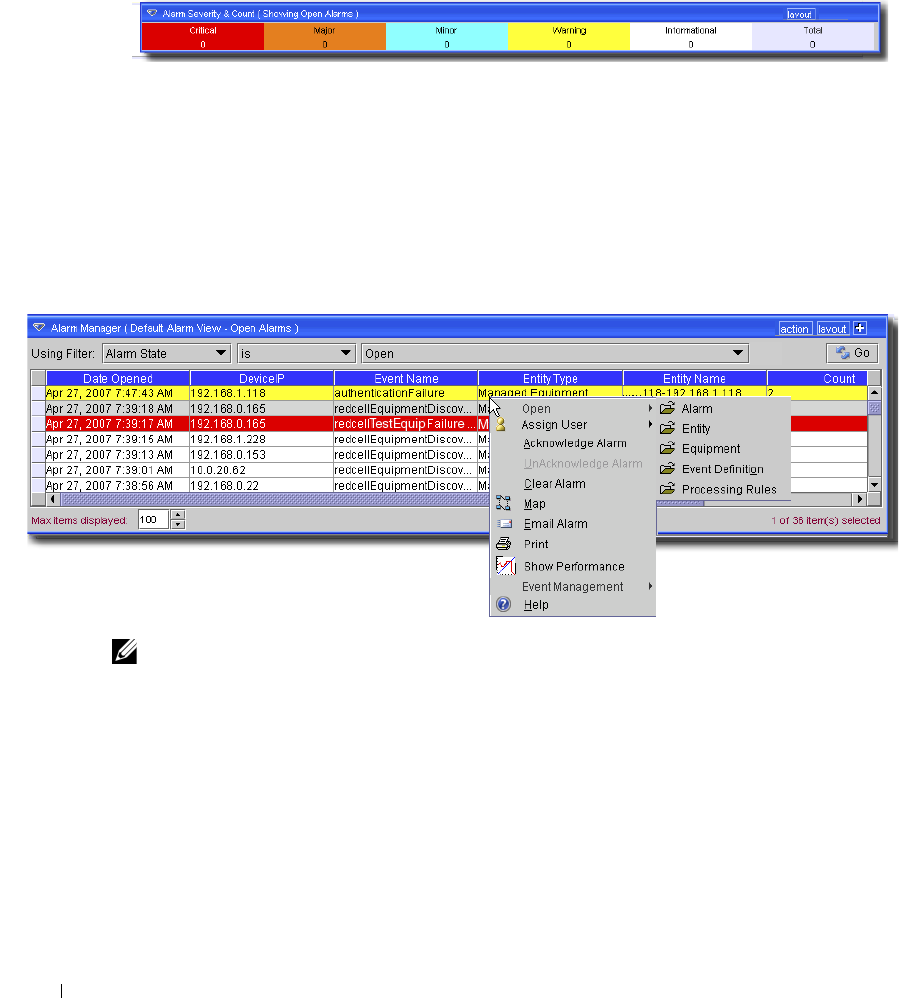

Figure 1:12. Event Severity & Count
This can either display All Events or Open Events . Change between these counts by clicking the
Layout button. Select Change Filter and choose the All Events or Open Events items.
Alarm Manager
In the Default filter, only Open alarms appear on these screens. You can change displayed columns
(Alarm attributes) with the plus (+) button near the top right of the screen, and modify filters to restrict
the alarms that appear in the display (see the
User Guide or online help for more about filters). For
example, you could filter to see alarms that are major and above for only selected equipment.
Figure 1:13. Alarm Manager
NOTE:
As in most such screens, you can sort the listed Alarms by clicking a column
header. Toggle the sort order by clicking the header again.
