Dell EMC chassis overview dashboard
Dell EMC chassis overview dashboard displays the overall heath status of the chassis environment.

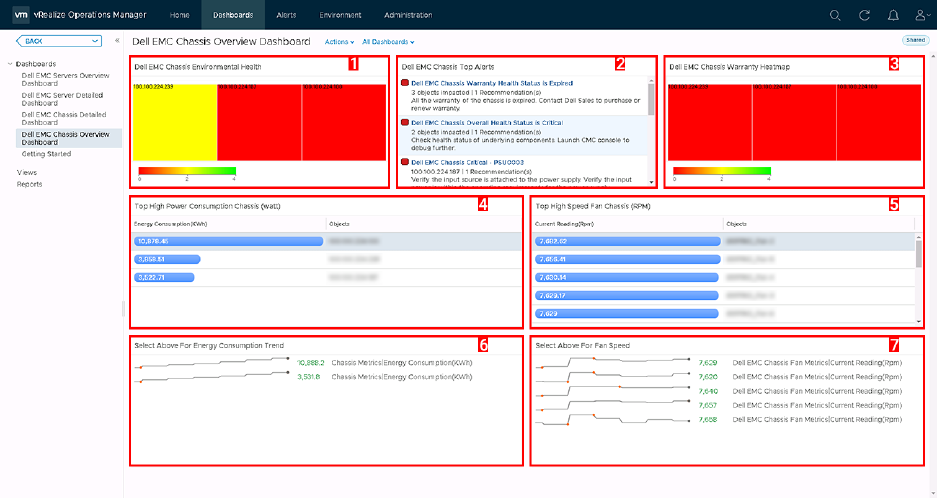

Figure 3. Dell EMC Chassis Overview Dashboard
1. Dell EMC Chassis Environmental Health: Displays the health status of all the chassis. Red indicates the critical state, yellow
indicates warning state, and green indicates healthy state. Health status is reported based on polling alone, SNMP Trap (External
Alerts) does not impact this heatmap. The source of Dell EMC Chassis Environmental Health is defined as Chassis Metrics|
Chassis OverAll Health(Enum).
2. Dell EMC Chassis Top Alerts: Displays top 15 alerts of the chassis. The source of Dell EMC Chassis Top Alerts is defined as Dell
EMC Chassis Group.
3. Chassis Warranty Heatmap: Displays the warranty status of all the Chassis. Red indicates Critical state, yellow indicates Warning
state, and green indicates Healthy state. OpenManage Management pack creates a warning or critical alert based on the Expiration
Notification Threshold set at OMIVV. The critical threshold values can have 4 different values: 15 Days, 30 Days, 45 Days and 60
Days. The warning threshold values can have 3 different values: 90 Days, 120 Days and 150 Days. The source of Dell EMC Chassis
Warranty Heatmap is defined as Chassis Metrics|Overall Warranty Status(Enum).
4. Top High-Power Consumption Chassis (watt): Displays the top 15 high-power consuming chassis. The source of Top High-
Power Consumption Chassis (watt) is defined as Chassis Metrics|Energy Consumption (KWh).
5. Top High Fan Speed Chassis (RPM): Displays the top 15 high fan speed chassis. The source of Top High Fan Speed Chassis
(RPM) is defined as Dell EMC Chassis Fan Metrics|Current Reading (RPM).
6. Select Above For Energy Consumption Trend: Displays the energy consumption trend for the chassis selected in Top High-
Power Consumption Chassis (watt) widget.
7. Select Above For Fan Speed: Displays the fan speed trend for the chassis selected in Top High Fan Speed Chassis (RPM)
widget.
Dell EMC Chassis detailed dashboard
Dell EMC Chassis Detailed Dashboard displays overall health status of the fan, PSU, and the Servers of the Chassis.
