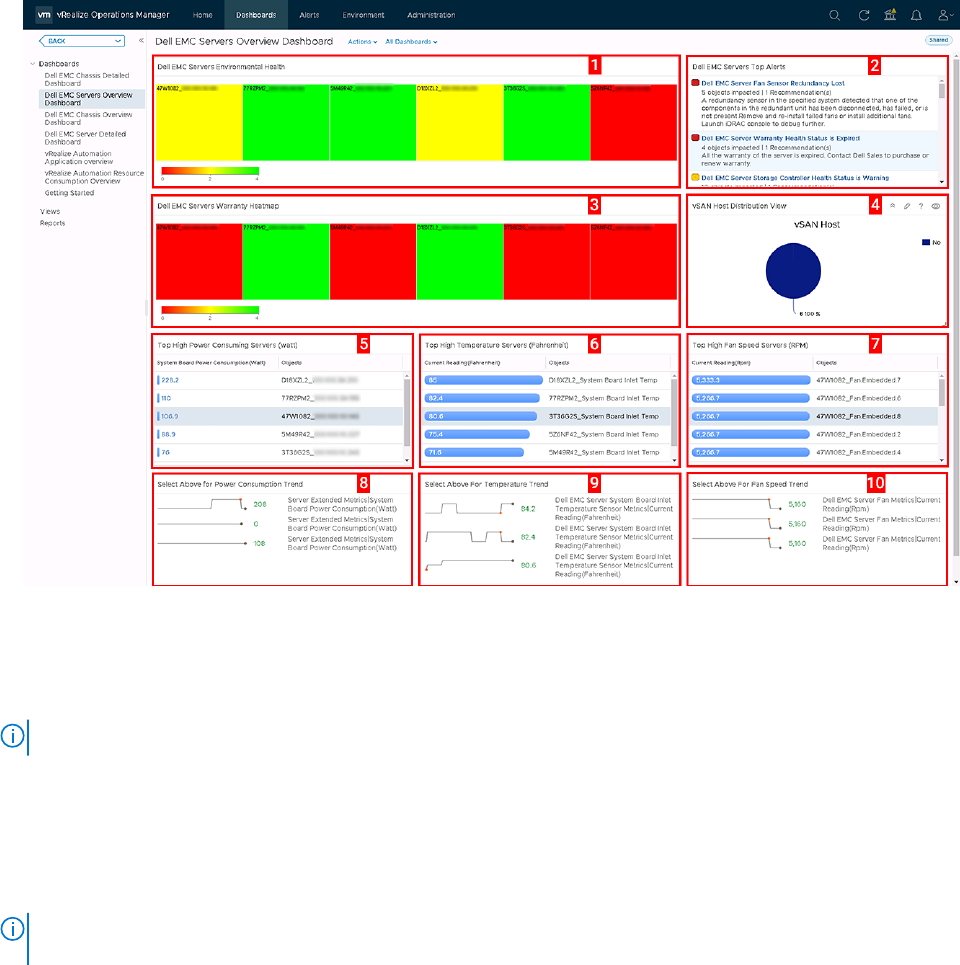

Figure 1. Dell EMC Servers Overview Dashboard
1. Dell EMC Servers Environmental Health: Displays the health status of all the servers. Red indicates Critical state, yellow indicates
Warning state, and green indicates Healthy state. The source of Dell EMC Servers Environmental Health is defined as Server
Metrics|Server Overall Health (Enum).
NOTE: Health status is reported based on polling, SNMP Trap (External Alerts) does not impact this heatmap.
2. Dell EMC Servers Top Alerts: Displays the top 15 alerts of PowerEdge servers. The source of Dell EMC Servers Top Alerts is
defined as Dell EMC Servers Group.
3. Dell EMC Server Warranty Heatmap: Displays the warranty status of all the servers. Red indicates Critical state, yellow indicates
Warning state, and green indicates Healthy state. OpenManage Management pack creates a warning or critical alert based on the
Expiration Notification Threshold set at OMIVV. The critical threshold values can have 4 different values: 15 Days, 30 Days, 45
Days and 60 Days. The warning threshold values can have 3 different values: 90 Days, 120 Days and 150 Days. The source of Dell EMC
Servers Warranty Heatmap is defined as Server Metrics|Overall Warranty Status(Enum).
NOTE:
No health status is reported if Warranty Notification Threshold is disabled at OMIVV or warranty is not
collected for the server.
4. vSAN Host Distribution View: Displays the distribution of vSAN Enabled Hosts(Yes/No) in the environment. For more information
about vSAN enablement for hosts, refer OpenManage Integration for VMware vCenter User's Guide version 4.2.The source of vSAN
Host Distribution View is defined as Dell EMC vSAN Enabled Servers View.
5. Top High Power Consuming Servers (watt): Displays the top 15 power consuming servers. The source of Top High Power
Consuming Servers (watt) is defined as Dell EMC Server|Server Extended Metrics| System Board Power Consumption
(Watt).
6. Top High Temperature Servers (Fahrenheit): Displays the top 15 high temperature servers. The source of Top High
Temperature Servers is defined as Dell EMC Sever System Board Inlet Temperature|Dell EMC Sever System Board Inlet
Temperature Sensor Metrics|Current Reading (Fahrenheit).
7. Top High Fan Speed Servers (RPM): Displays the top 15 high fan speed servers. The source of Top High Fan Speed Servers
(RPM) is defined as Dell EMC Server Fan|Dell EMC Server Fan Metrics|Current Reading (RPM).
8. Select Above For Power Consumption Trend: Displays the power consumption trend for the server selected in the Top High
Power Consuming Servers (watt) widget.
9. Select Above For Temperature Trend: Displays the system board inlet temperature trend for the server selected in the Top High
Temperature Servers (Fahrenheit) widget.
10. Select Above For Fan Speed Trend: Displays the fan speed trend for the server selected in the Top High Fan Speed Servers
(RPM) widget.
