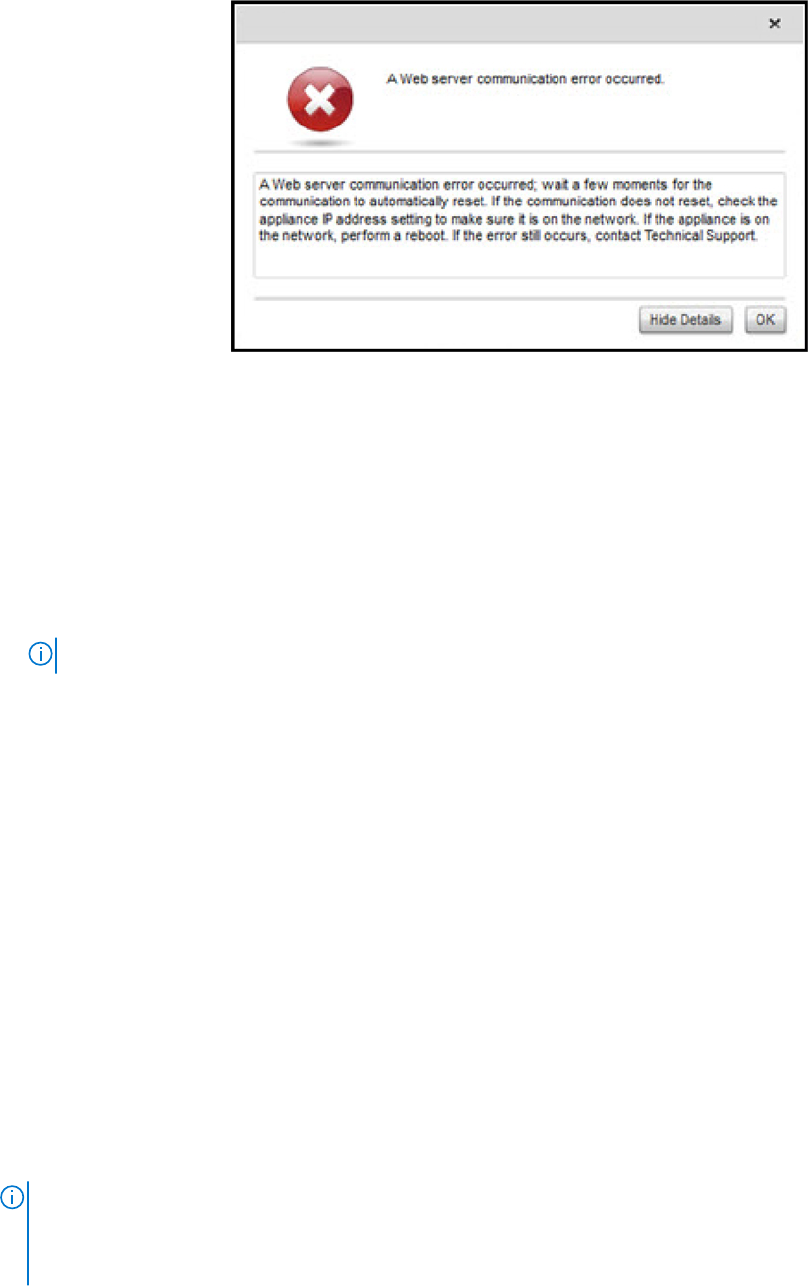

Figure 4. Firmware link communication error
1. Open Microsoft Registry Editor (Regedit).
2. Navigate to the following location:
KHEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Internet Settings
3. Add a DWORD value for ReceiveTimeout.
4. Set the value to 30 seconds (30000).
This value must be a higher value in your environment
5. Exit Regedit.
6. Restart Internet Explorer.
NOTE: Opening a new Internet Explorer window is not enough. Restart the Internet Explorer browser.
What generation of Dell servers does OMIVV configure and
support for SNMP traps?
OMIVV supports OMSA SNMP traps on pre-12th generation servers and the iDRAC traps on 12th generation servers.
What vCenter servers are managed by OMIVV?
OMIVV manages only registered vCenter servers in either linked mode or not in a linked mode.
Does OMIVV support vCenter in linked mode?
Yes, OMIVV supports up to 10 vCenter servers either in a linked mode or not in a linked mode. For more information about how OMIVV
works in linked mode, see the white paper, OpenManage Integration for VMware vCenter: Working in Linked Mode at www.dell.com.
What are required port settings for OMIVV?
NOTE:
When deploying the OMSA agent by using the Fix non-compliant vSphere hosts link available from the
Compliance window in OMIVV, OMIVV starts the http client service and enables port 8080 on releases after ESXI 5.0 to
download the OMSA VIB and install it. After the OMSA VIB installation is complete, the service automatically stops and
the port is closed.
Use the following port settings for OMIVV:
