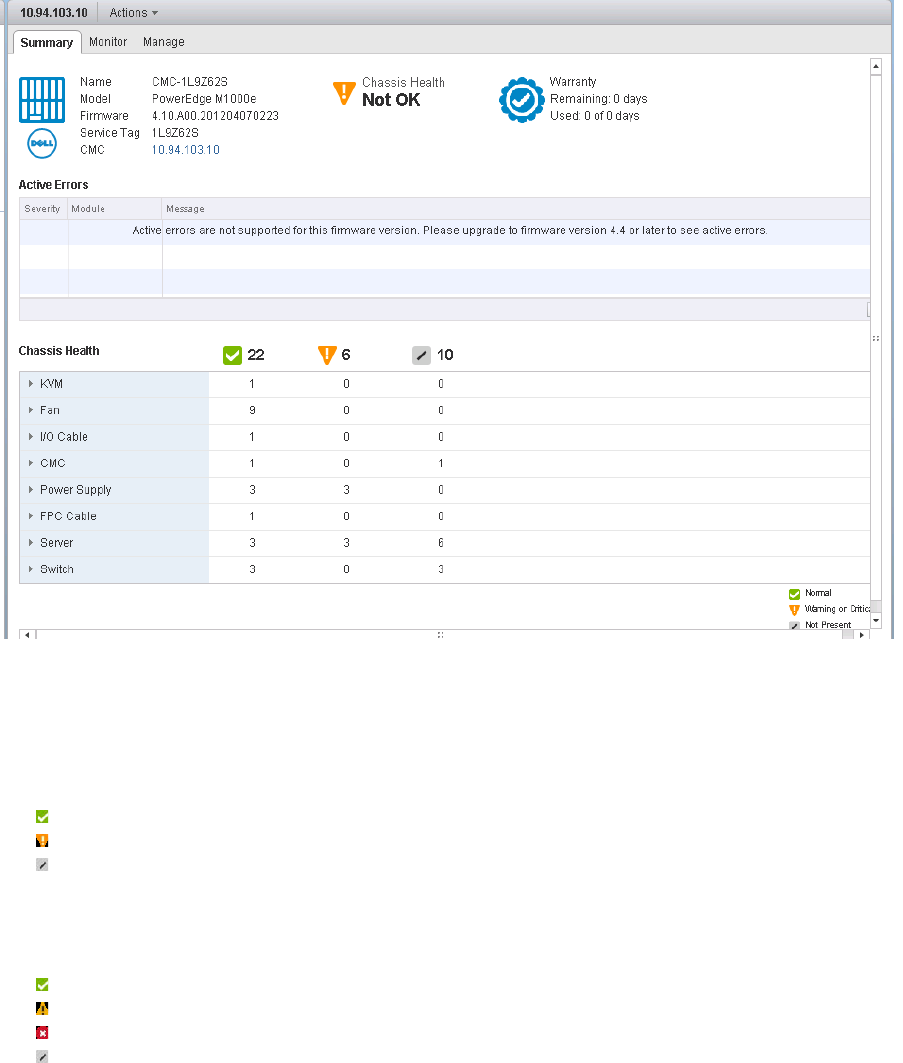

Figure 4 Health status for M1000e having CMC firmware version less than 4.4
You can find a legend for the chassis health statuses in the bottom right corner on the Summary
page:
Normal (Healthy)
Warning or Critical (Not Ok)
Not Present
Figure 5 Legend for M1000e chassis with firmware version 4.3 and earlier
Normal (Healthy)
Warning
Critical
Not Present
Figure 6 Legend for M1000e chassis with firmware version 4.4 and later and VRTX chassis
1.1.3 Active Errors
The active errors provide more information about current health of the components and the
reason why the component health is not okay. Chassis summary page has an option to launch
CMC web console of a Chassis for further investigation. Active Errors can be exported to CSV file
for further reference or action. Active errors information is only available for M1000e chassis with
firmware version 4.4 or later and VRTX chassis.
