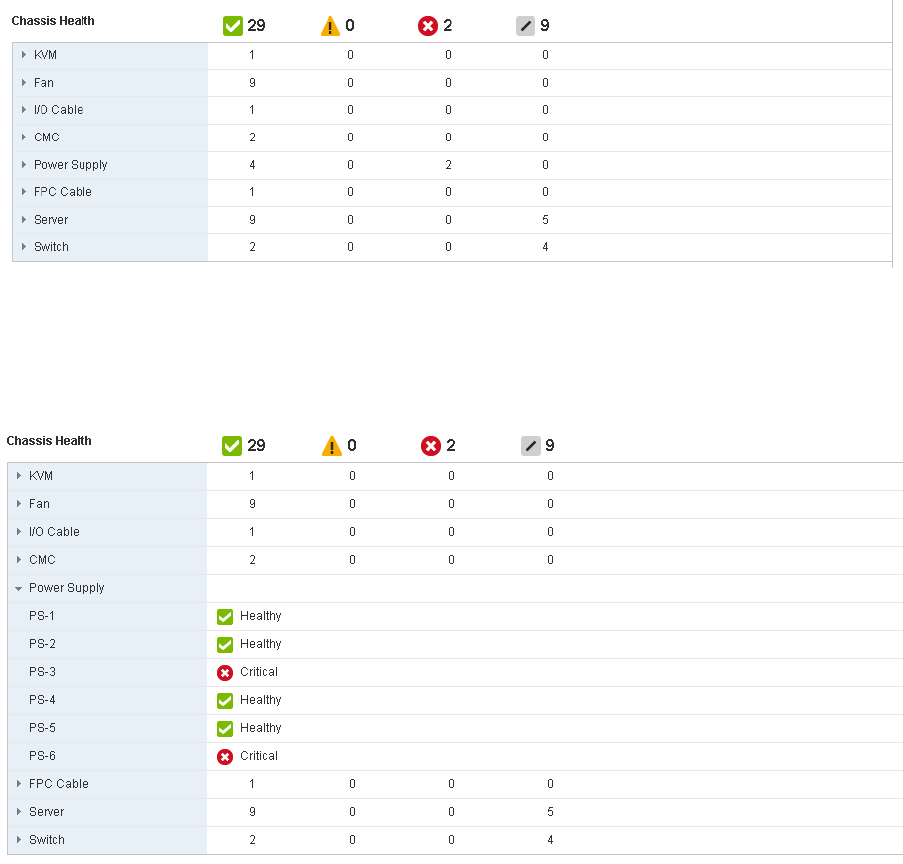

Figure 2 Chassis Individual Component Health
Expanding an individual component object further shows more details about the individual
component
Figure 3 Expanded view for a particular component
For M1000e having CMC firmware version 4.3 and previous versions, the health status shown are
Normal (healthy) and Warning or Critical (Not OK). It is recommended to have CMC firmware
version 4.4 and later to get more accurate information about the chassis health.
Note: Refer Chassis (M1000e/VRTX) User Guide to understand more about how the health status
of an individual component is determined.
