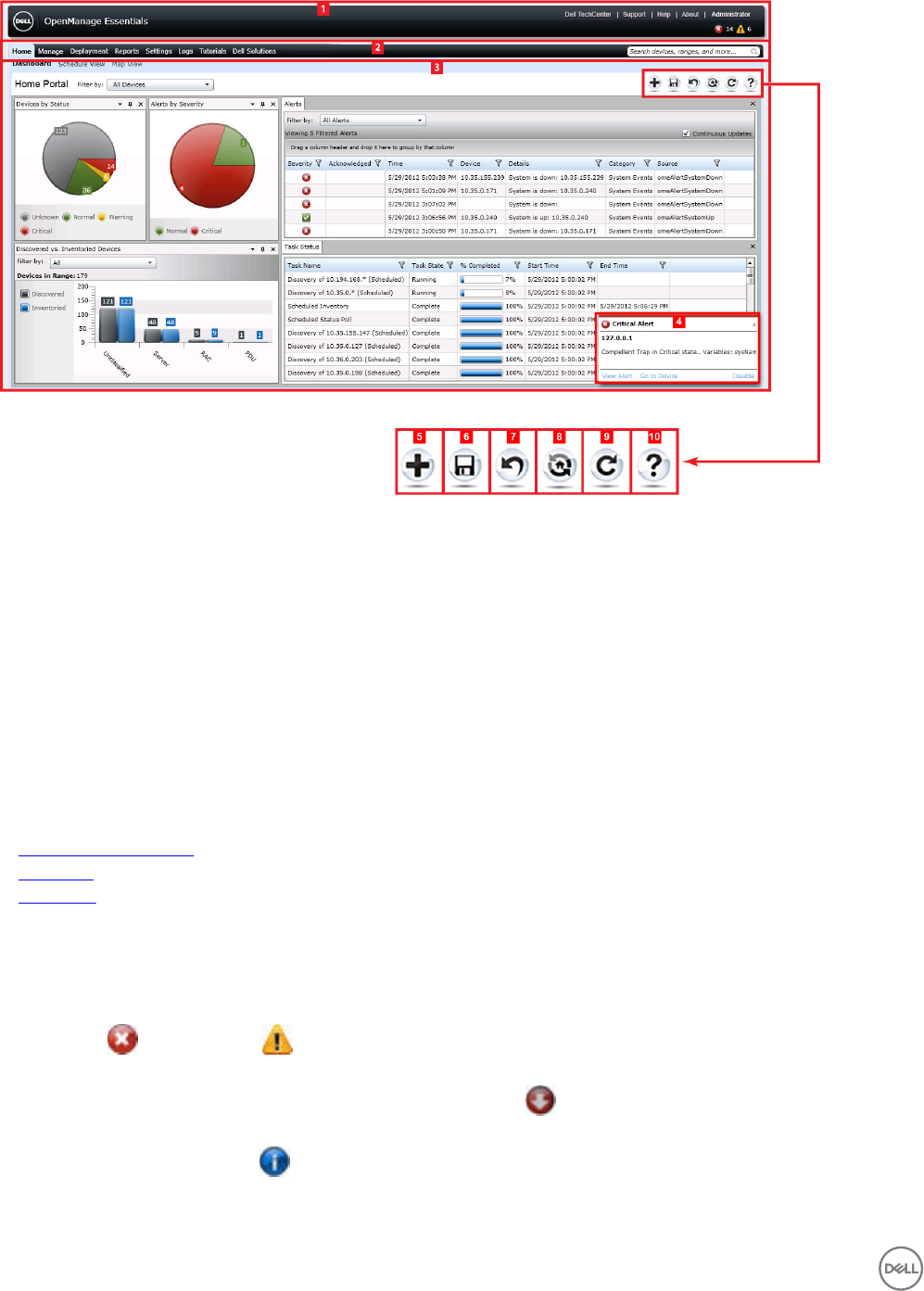

Figure 1. OpenManage Essentials Home Portal
1. Heading banner
2. Menu items and search bar
3. Console area
4. Alert pop-up notification
5. Add a report to the home portal
6. Save the current home portal layout
7. Load the last saved home portal layout
8. Load the default home portal layout
9. Refresh the home portal page
10. Launch the online help
Related links
Map View (Home) Portal
Dashboard
Search Bar
OpenManage Essentials Heading Banner
The banner may display the following icons:
• Critical icon and Warning icon including the number of devices. You can click the icon or the number to view the devices
in either state.
• OpenManage Essentials service not running icon (blinking down arrow) . You can click the icon to view the details and to
restart the service.
• Update available notification icon indicates if a newer version of OpenManage Essentials is available. Click the icon to open
a New Version Available window that displays the currently installed and newly available version of OpenManage Essentials.
