Filtering Report Data
You can filter the results by dragging and dropping column headers to the top of reports. You can choose one or more attributes
when revising the view to meet your specific needs.
For example, in the NIC Information report, drag the System Type and System Name to the top of the report. The view
immediately changes to a nesting of information based on your preference. In this example, you can view nested data for NICs; NIC
IP Address, MAC Address, and NIC description.

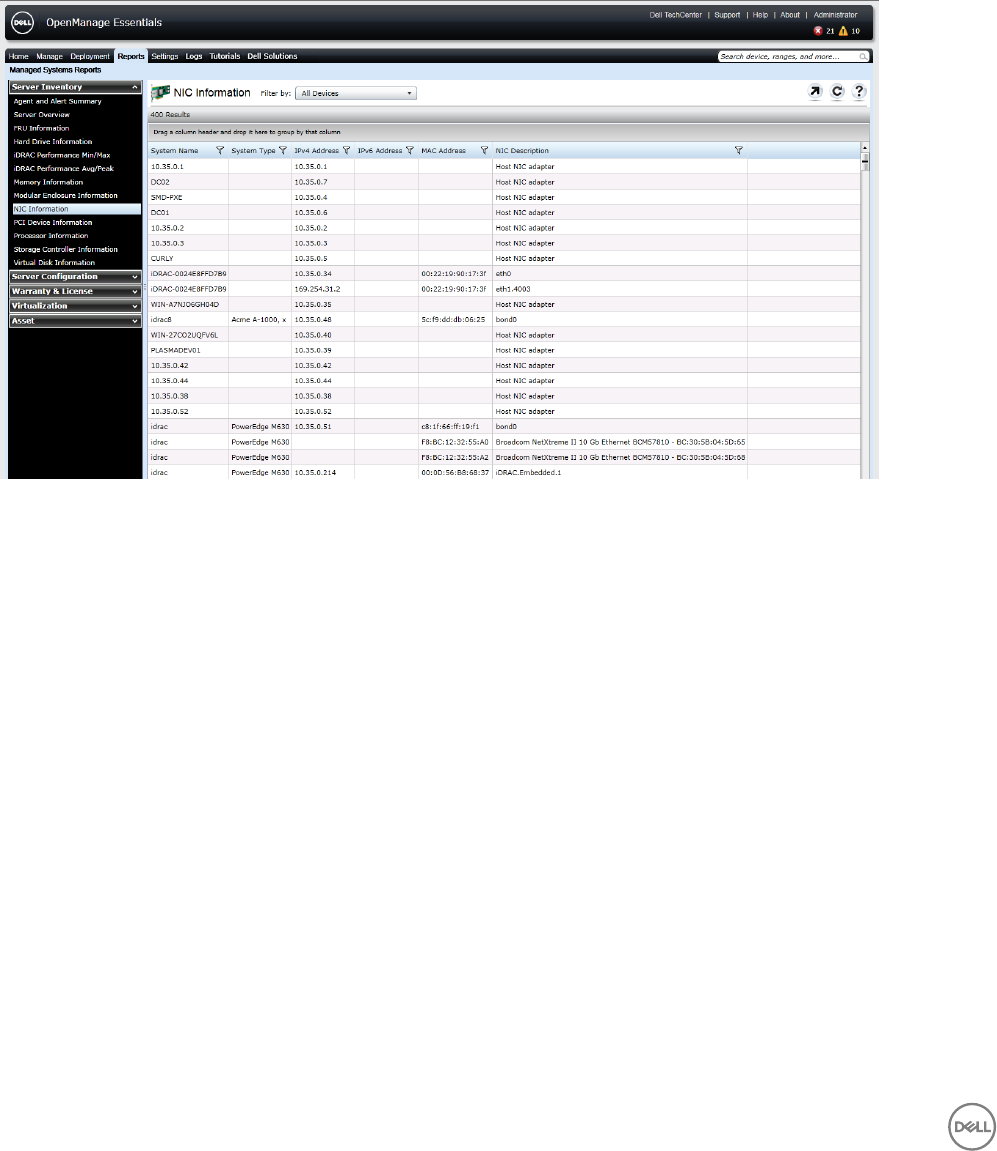

Figure 28. NIC Information Report
Exporting Reports
Exporting a report enables you to manipulate and reformat the data. To export a report:
1. In the Reports list, right-click on any report to display the Export option.
2. Scroll over the Export option to display supported formats.
3. Choose your preferred format (CSV, HTML, or XML) and provide a file name for the exported report.
216
