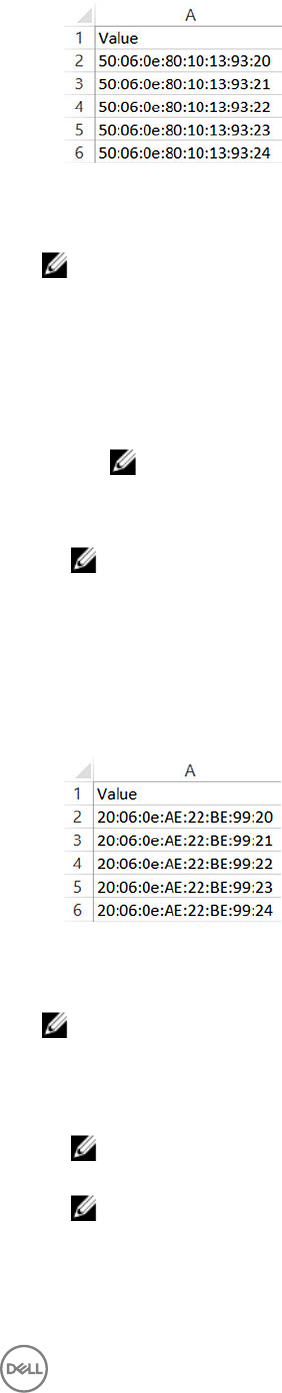

Figure 24. Sample .csv file with WWNN identities
6. On the FCoE Port Name Identities page, perform one of the following:
NOTE: If you do not want to include fibre channel WWPN identities in the virtual I/O pool, clear the Include Fibre
Channel WWPN Identities in the pool option, and then click Next.
a. If you want to provide a prefix for the WWPN identities that will be generated, click Specify a prefix to allocate from and
perform the following:
1. In the Number of predefined octets box, type or select the number of octets that you want to predefine in the
WWPN identities that will be generated.
NOTE: The first octet of the WWPN identity must start with 2, 5, or 6.
2. Type the octet values that you want to define in the appropriate fields, and then click Next.
b. If you want to import the WWPN identities from a .csv file, click Import from file and perform the following:
NOTE: You can import up to 1000 identities using a .csv file. The .csv file must have a column titled Name or
Value.
1. Click Import.
2. On the Import Wizard, click Import.
3. Browse and select the .csv file and click Open. The Import Results window is displayed.
4. Close the Import Results window and the Import Wizard, and then click Next.
Figure 25. Sample .csv file with WWPN identities
7. On the iSCSI IQN Identities page, perform one of the following:
NOTE: If you do not want to include iSCSI IQN identities in the virtual I/O pool, clear the Include IQN Identities in
the pool option, and then click Next.
a. If you want to provide a prefix for the iSCSI IQN identities that will be generated, click Specify a prefix to allocate from,
and type the IQN in the appropriate field.
NOTE: The typical iSCSI IQN format is:
iqn.date.domainname-in-reverse:storage-identifier
. For example, iqn.
2001-04.com.example:storage.disk2.sys1.xyz.
NOTE: The iSCSI IQN identifier string can include the following special characters: hyphen, comma, colon, and
period.
b. If you want to import the iSCSI IQN identities from a .csv file, click Import from file and perform the following:
141
