Maintenance | 57

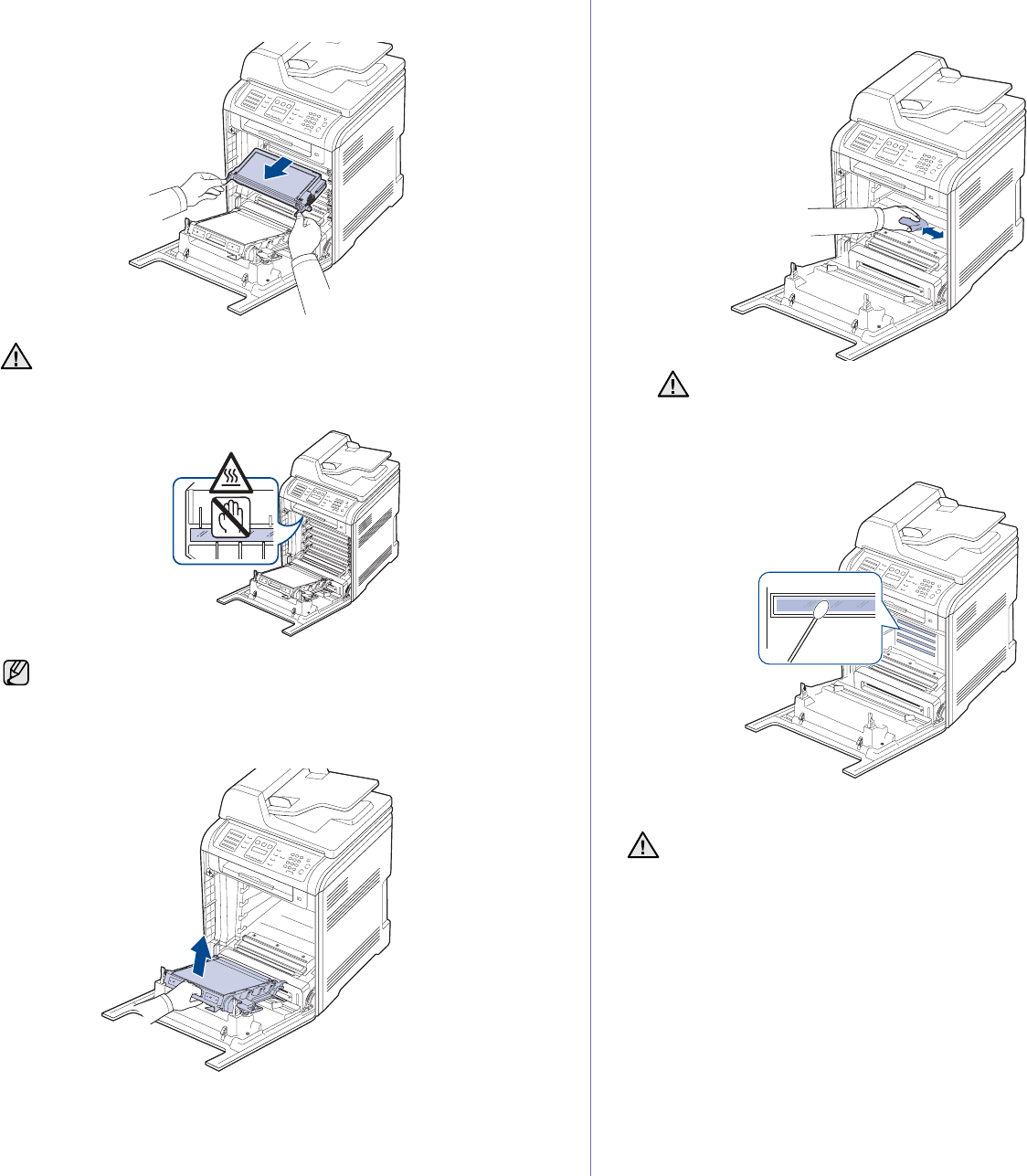

3. Grasp the handles on the toner cartridge and pull to remove the

cartridge from the printer.

4. Press the green release handle to release the paper transfer belt.

Holding the handle on the paper transfer belt, lift it out of the printer.

5. With a dry lint-free cloth, wipe away any dust and spilled toner from the

toner cartridges area and their cavities.

6. Locate the long strip of glass (LSU) inside the cartridge compartment,

and gently swab the glass to see if dirt turns the white cotten black.

7. Reinstall all the compartments into the printer, and close the front cover.

8. Plug in the power cord and turn the printer on.

When you open the front cover, be careful not to touch the

underneath of the control panel (the lower part of the fuser unit). The

temperature of the fuser unit might be high and could damage your

skin.

When you open the front cover and work inside the printer, it is highly

recommend that you remove the paper transfer belt first. Because the

work you do could contaminate the paper transfer belt.

If toner gets on your clothing, wipe it off with a dry cloth and wash

it in cold water. Hot water sets toner into fabric.

If the front cover is not completely closed, the printer will not operate.
