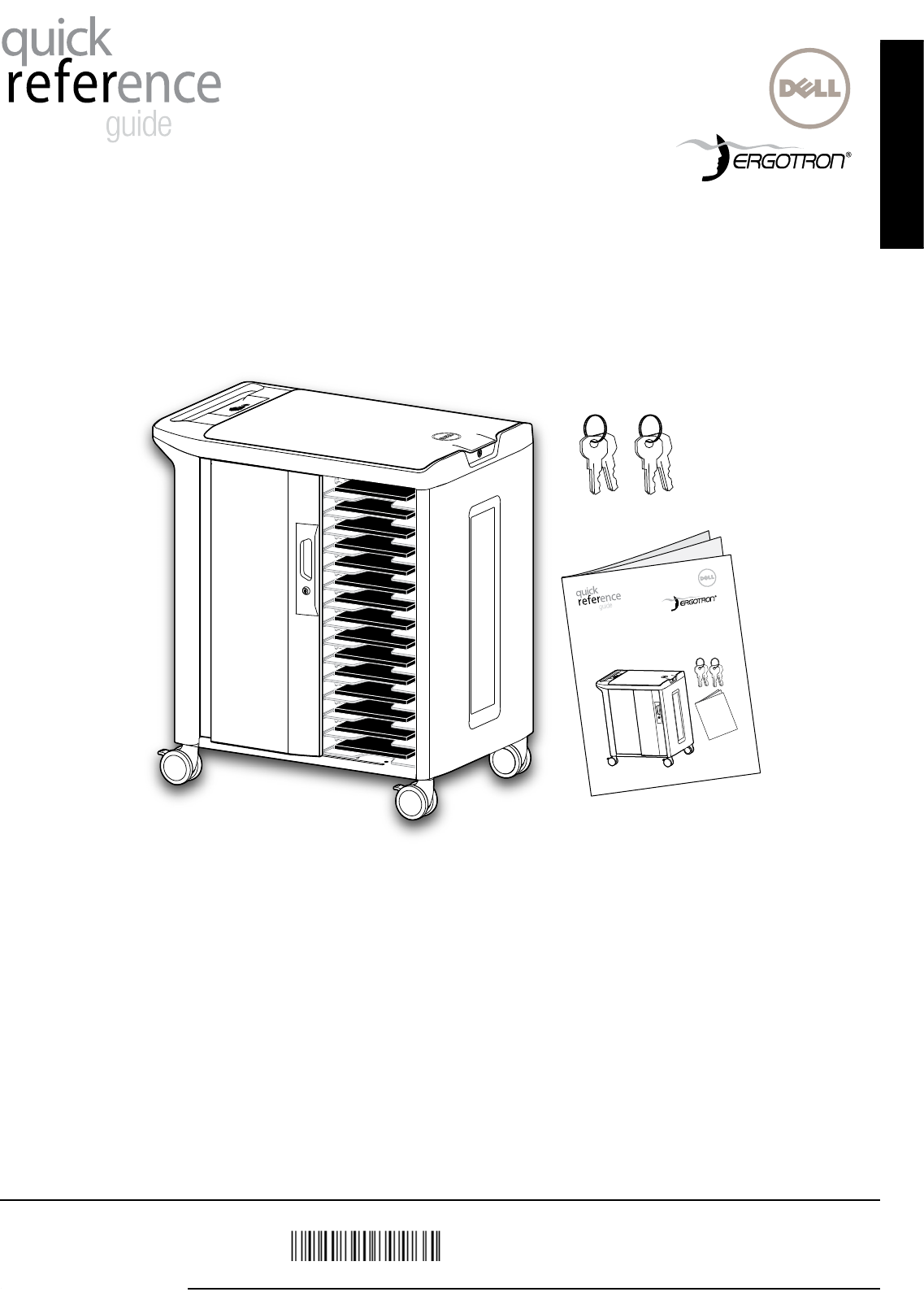

CUSTOM N FOR SOLUTIO DELL BY ERGOTRON Dell Mobile Computing Cart Dell Mobile Computing Cart – Managed (with Docking) for Dell Latitude 3340 Models: ERGITD-001 ERGITD-002 888-24-270-M-01 rev.B • 03/14 0JYR2 A01 For service, visit www.ergotron.com/Dell or www.dell.
ENGLISH Dell Mobile Computing Cart Exterior Features 1 Sliding Device Compartment Door 3 2 Power Adapter Compartment Door 4 3 Ergonomic Handle 4 Auxiliary Outlets 5 Cooling Fans (Managed Carts only) 6 Power Management Compartment 7 Cord Wrap Bay 8 Upper Compartment 9 Locks 5 6 2 1 7 10 8 10 Power/ Fault Status Indicators (Managed Carts only) 11 Casters 9 11 2 / 13 888-24-270-M-01 rev.
Dell Mobile Computing Cart ENGLISH Interior Features 1 Device Shelves 2 Device Outlets 3 Adapter Shelves 4 Optional Outlets (Managed Carts only) 5 Optional Dell PowerConnect 3548 Ethernet Switch (Managed Carts only) 4 5 3 1 2 NOTE: Refer to separate product guides for Mobile Devices and optional Dell PowerConnect™ 3548 Ethernet Switch. 888-24-270-M-01 rev.
ENGLISH Set-Up and Go 1 Open the power adapter compartment. a 2 b Place power adapters into adapter shelves. c b a c 3 4 / 13 x 15 Plug-in adapters. a b c 888-24-270-M-01 rev.
Plug-in adapters. 5 Insert mobile devices and connect cables. a a ENGLISH 4 b b c 888-24-270-M-01 rev.
a SS RN LE E HE Po W IRE PO W ER CISCO NOTE: For Managed Carts, install optional, customer-supplied WAP using the provided Velcro. ET Optional Step for Managed Carts only - Install wireless access point. ET ENGLISH 6 b c IC OCS IC OCS IC OCS IC OCS IC OCS IC OCS d 7 IC OCS Verify cart operation Connect the MCC power cable to a dedicated circuit, (one that is not being shared with other mobile devices).
First-Time battery charge ENGLISH NOTE: Before using the mobile devices for the first time or after they have spent some time in storage, ensure that the mobile devices have a full (100%) charge. Prior to first-time use, allow the mobile devices to charge in the MCC for at least 2-3 hours before removing them for use.
ENGLISH Service and Warranty For service, visit www.ergotron.com/Dell or www.dell.com/support NOTE: When contacting customer service reference the serial number located above the external cable management bay. Serial Number is required for warranty entitlement.
Symbol Signal Word Hazard Symbols Review These symbols alert users of a safety condition that demands attention. All MCC users should be able to recognize and understand the significance of the following Safety Hazards if encountered on the MCC or within MCC documentation.
ENGLISH Cleaning and Maintenance WARNING: Failure to observe the following safety notices may result in serious personal injury or equipment damage. Inspect for damage, dirt and debris on a regular basis. All paint and plastic components used in the Cart will withstand cleaning by most commonly used, diluted, non-abrasive solutions such as quaternary ammonia compounds, ammonia enzyme cleaners, bleach, or alcohol solutions.
ENGLISH Safe Use Recommendations There are specific risks associated with the use of Cart when moving or stationary (for charging or storage). You must be aware of, and avoid these risks when the Cart is located in close proximity to children. WARNING: Failure to observe the following Cart Use Safety notices may result in serious personal injury or equipment damage. Only Adults should move this cart. • Do not allow anyone to sit, stand, or climb on the Cart. • Do not lift the Cart from the bottom.
