Dell HPC NFS Storage Solution - High Availability Configurations
Page 40

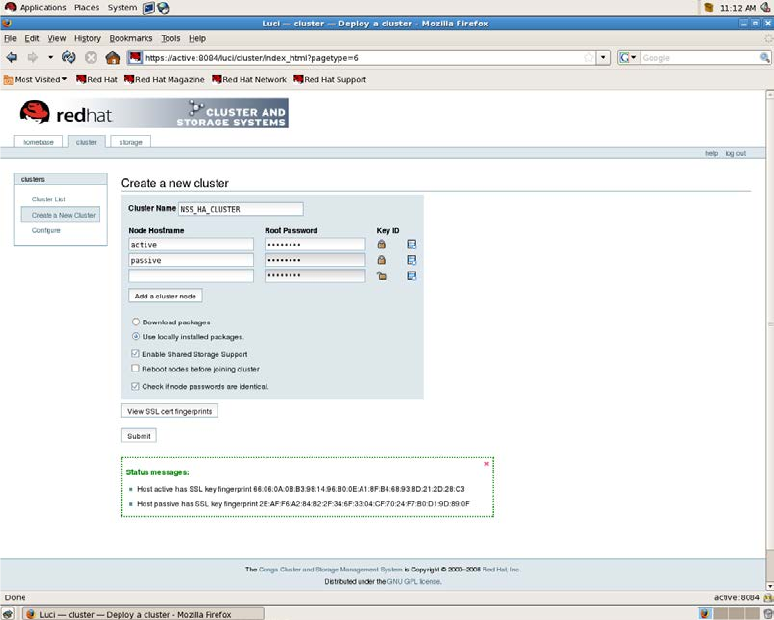

Figure 18 - Create a New Cluster
7) On both servers, check that the cman service is running.
# service cman status
8) On both servers, check the cluster status:
# clustat
Cluster status should show both servers online. If the cluster is up and running, go on to the next step.
[root@active ~]# clustat
Cluster Status for NSS_HA_CLUSTER @ Wed Mar 2 17:36:36 2011
Member Status: Quorate
Member Name ID Status
------ ---- ---- ------
active 1 Online, Local
passive 2 Online
9) Re-set any HA LVM configuration that might have changed as a result of cluster packages installed
by luci.
On both servers, edit /etc/lvm/lvm.conf and set locking_type to be 1
Remake the initrd
# mkinitrd -f /boot/initrd-2.6.18-194.el5.img 2.6.18-194.el5
