The CLI command below will restore the FN IOM to factory defaults, put it into Standalone mode and
reboot it.
Dell#restore factory-defaults stack-unit 0 clear-all
Proceed with factory settings? Confirm [yes/no]:y
FN IOM restore factory defaults

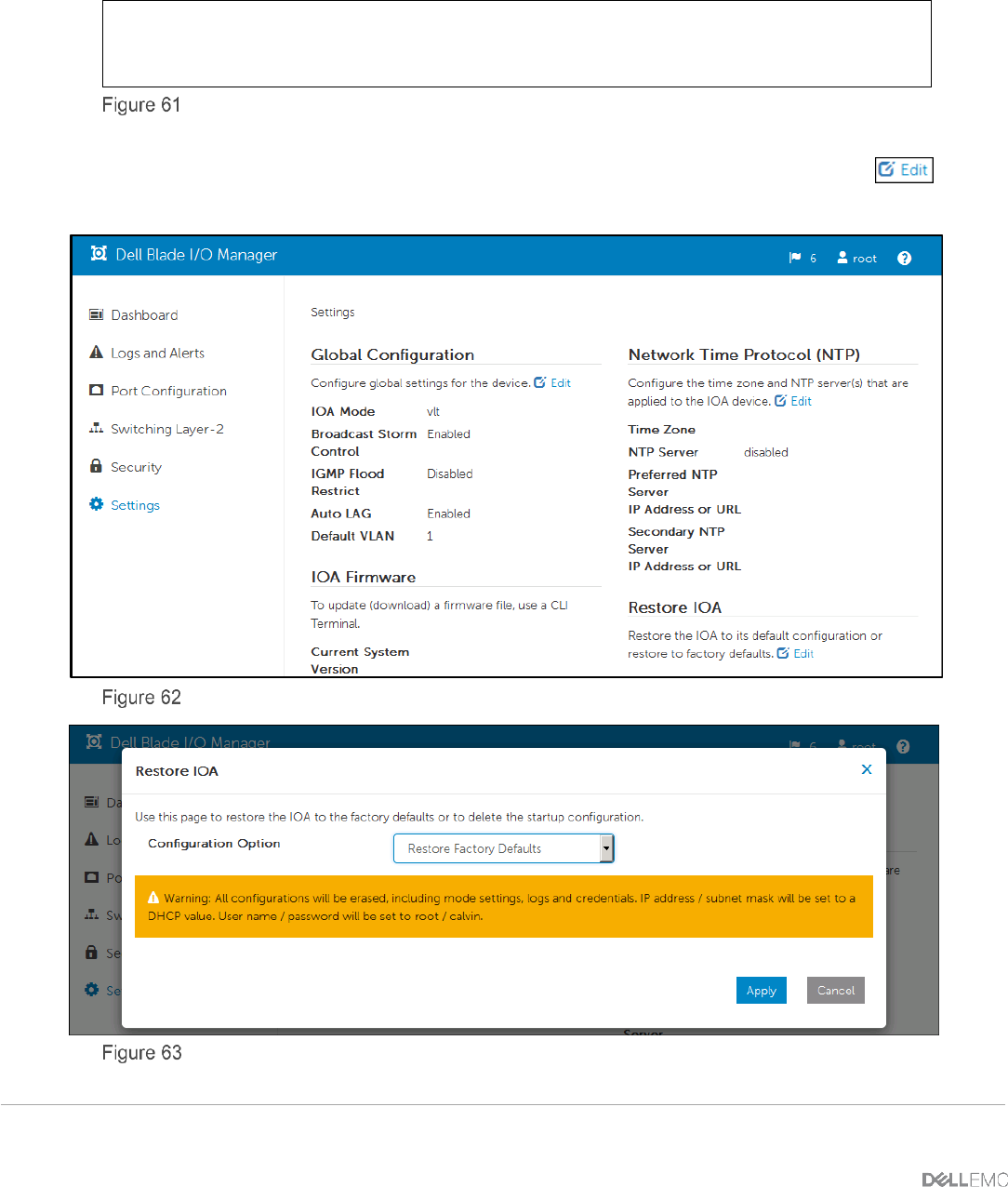

To reset the FN IOM to factory default Standalone Mode using the Blade I/O Manager GUI page
below, from the initial Dashboard view (Figure 62) click on Settings, then click on the edit icon
to the right of Restore IOA.
Initial dashboard view
Restore IOA
