D Reset FN IOM to Default Factory Configuration
The FN IOM can be checked for factory default mode in two ways. With the new firmware revision
9.10, the Dell Blade I/O manager can show the currently configured mode from the Dashboard view.

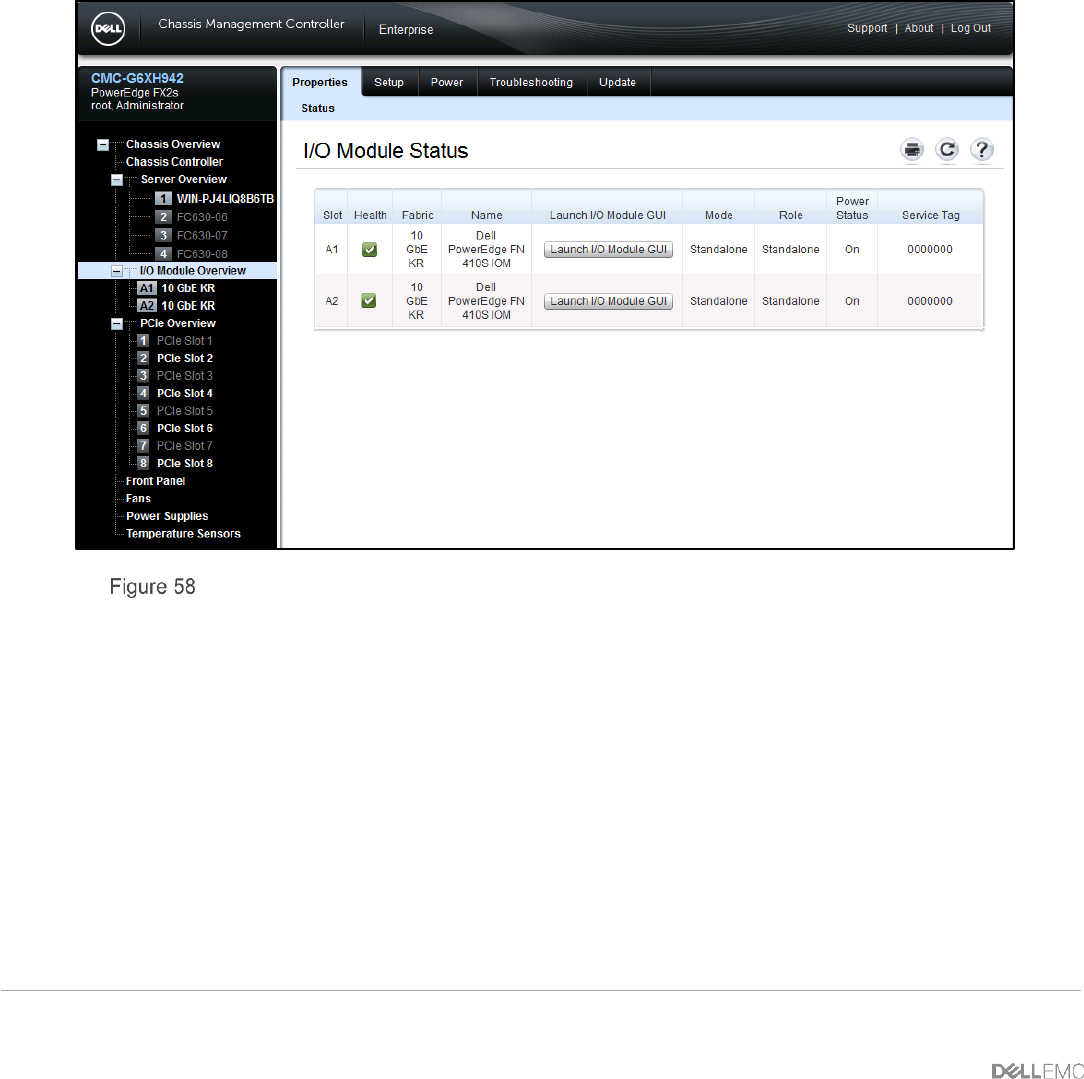

Figure 58 and Figure 59 show how to launch the Dell Blade I/O Manager and the Dashboard view with
the Active IOA Mode showing Standalone. Figure 60 is the traditional view utilizing the standard CLI
command show system stack-unit 0 iom-mode
CMC I/O Module Status page
