31 PowerEdge FX2 – FN I/O Module – VLT Deployment Guide | Version 2.2

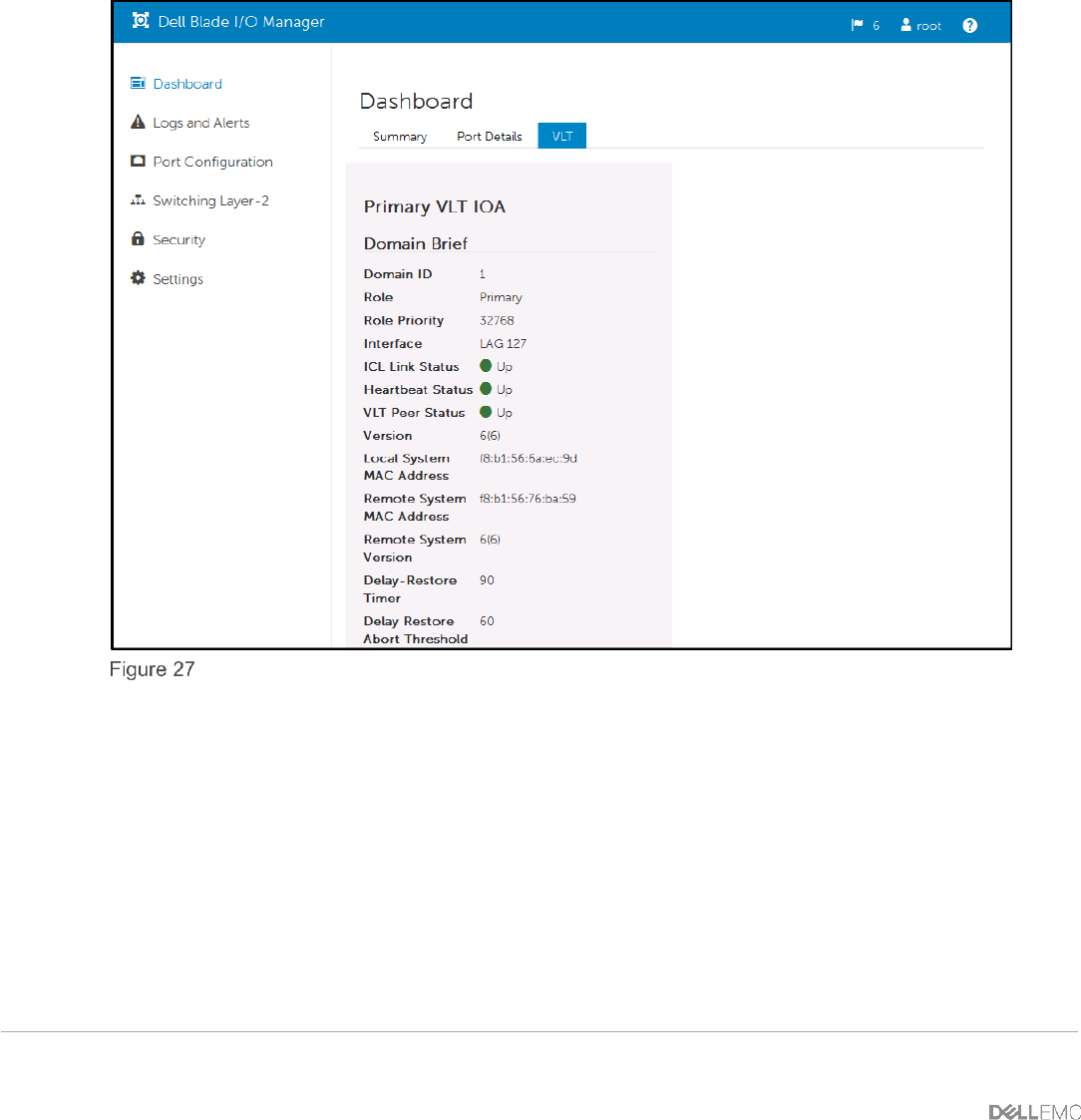

In VLT mode, the Dashboard view has a VLT tab (Figure 27) that can show most aspects of the VLT
such as:
Domain ID
Role
ICL, Heartbeat, and VLT Peer Status
This view is equivalent to the command show vlt brief
FN IOM Dell Blade I/O Manager show VLT brief
