After an IP address has been established via the FX2 CMC, it can be modified from the Dashboard
view by clicking on the edit icon and then either assigning all the static IP information, or
choosing DHCP.

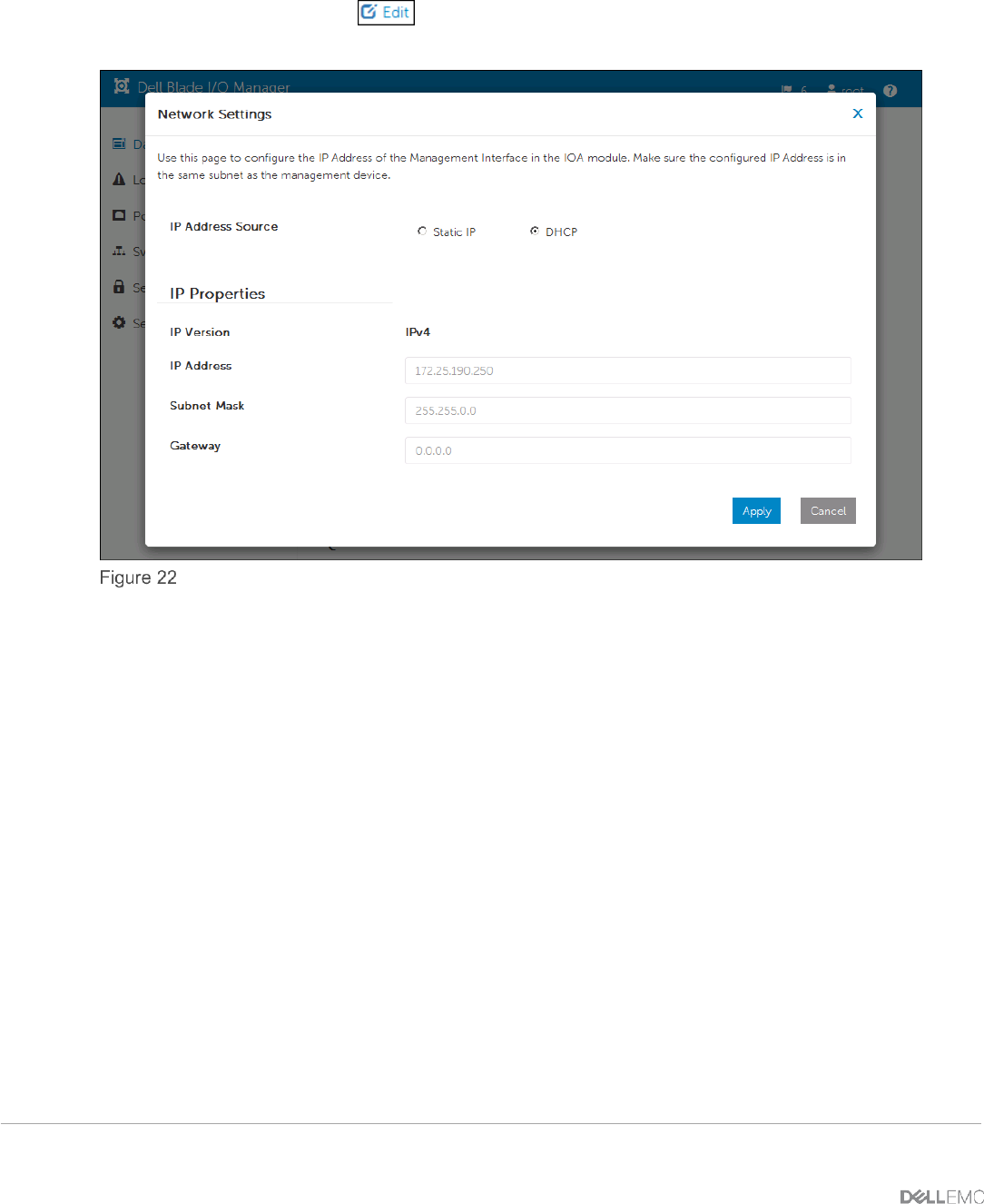

FN IOM Dell Blade I/O Manager IP address configuration
