While the command interface management 0/0 ip address 172.25.189.26/16 can set
the ip address of the FN IOM module. Figure 21 below shows that from the FX2 CMC > IO Module
Overview > Setup, an ip address can be either statically assigned or a DHCP IP address can be
chosen to be assigned.

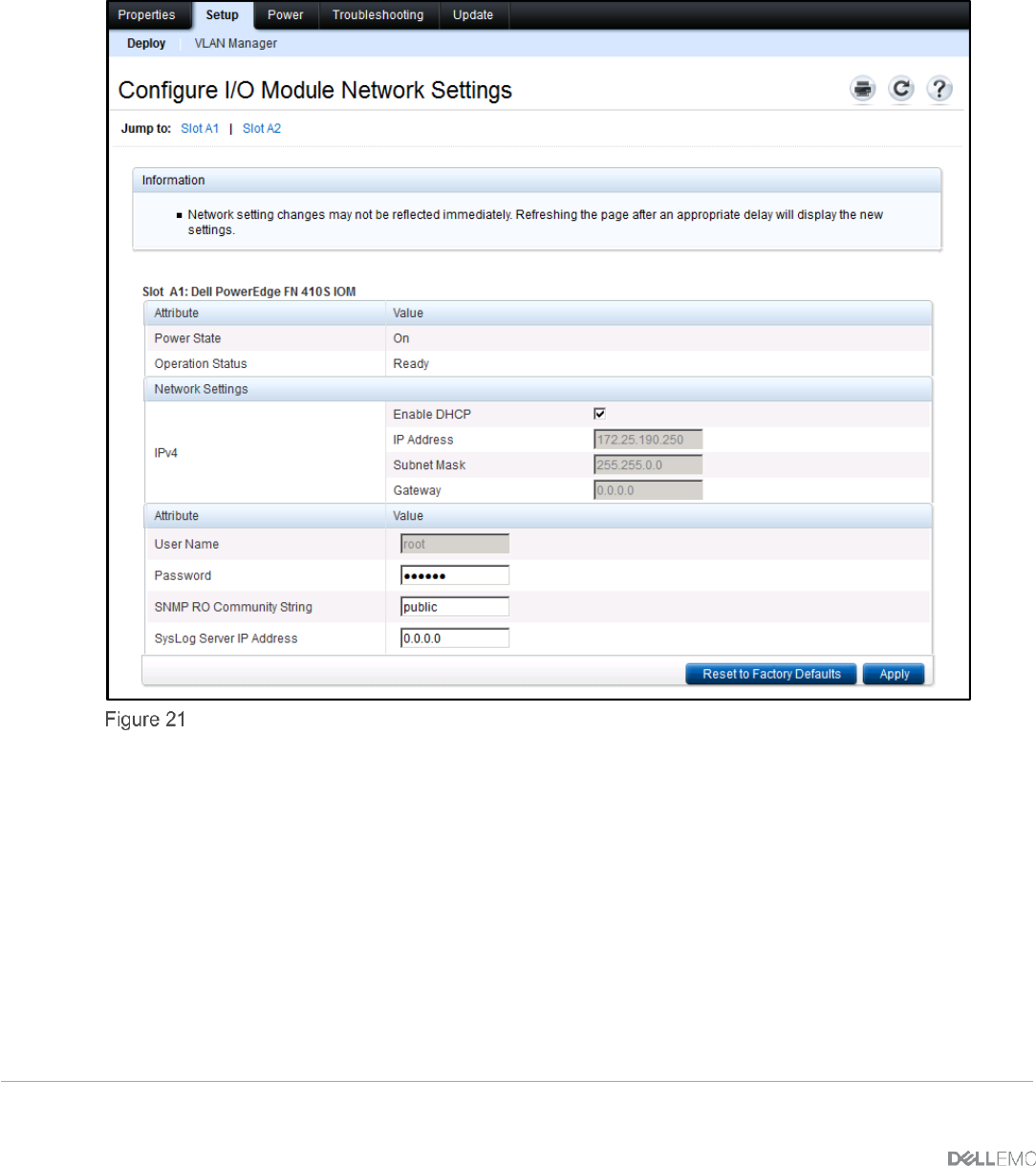

FX2 IO module IP address configuration
