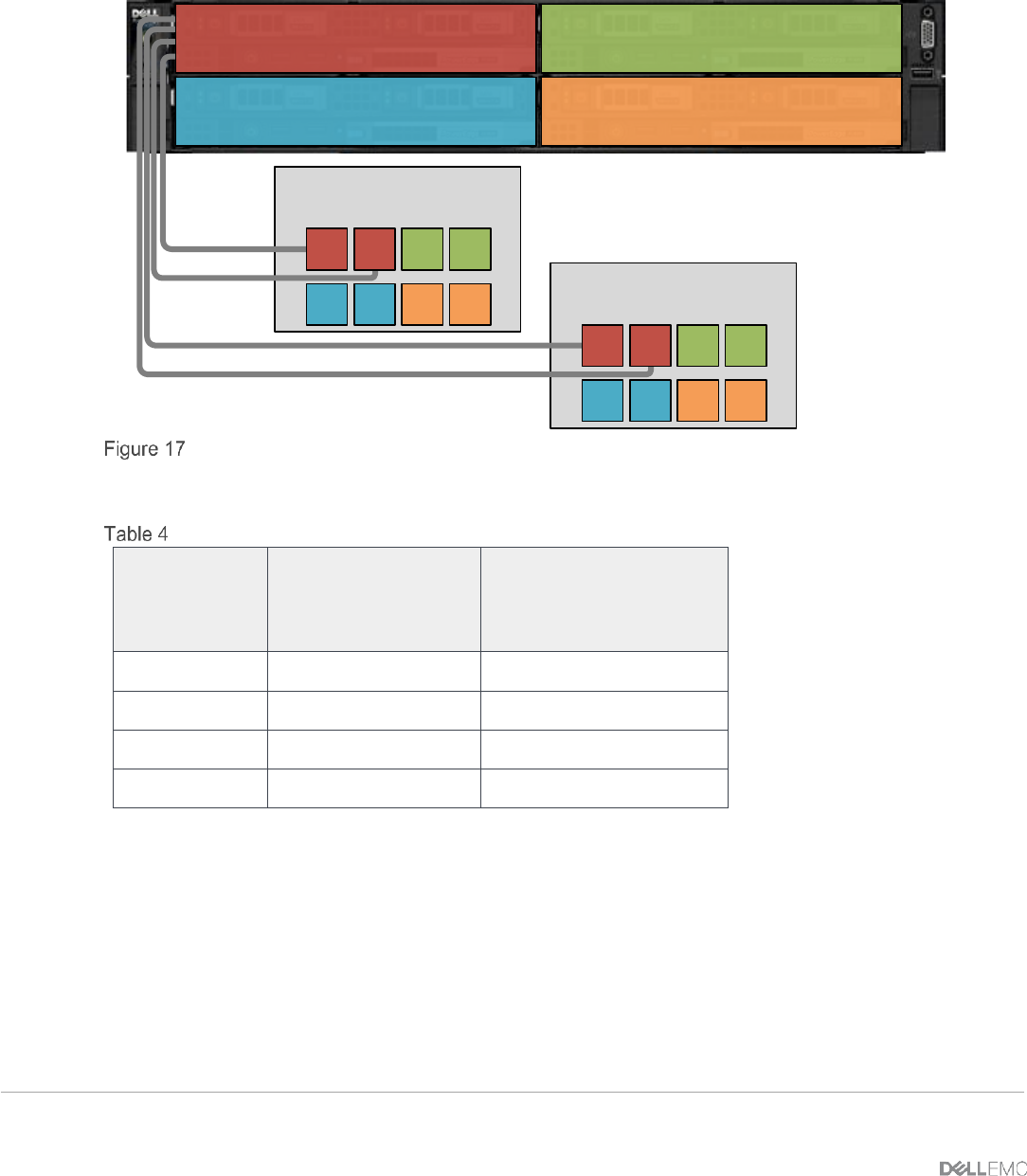

Half-height slots - quad-port CNAs
In half-height slots with quad-port CNAs installed in the server blades, the slots map to two ports on
each IOA. Figure 17 and Table 4 present the port mapping for half-height slots with quad-port CNAs.
Slot 2
Slot 3 Slot 4
FN2210S IOA A1 (Top)
Internal Ports
5 6
3
7
4
8
21
FN2210S IOA A2 (Bottom)
Internal Ports
5 6
3
7
4
8
1
Slot 1
2
Half-height slots with quad-port CNAs
Half-height slots with quad-port CNAs
Slot
IOA A1
Port
Numbers
(Top)
IOA A2 Port
Numbers
(Bottom)
1
1,2
1,2
2
3,4
3,4
3
5,6
5,6
4
7,8
7,8
