105 PowerEdge FX2 – FN I/O Module – VLT Deployment Guide | Version 2.2

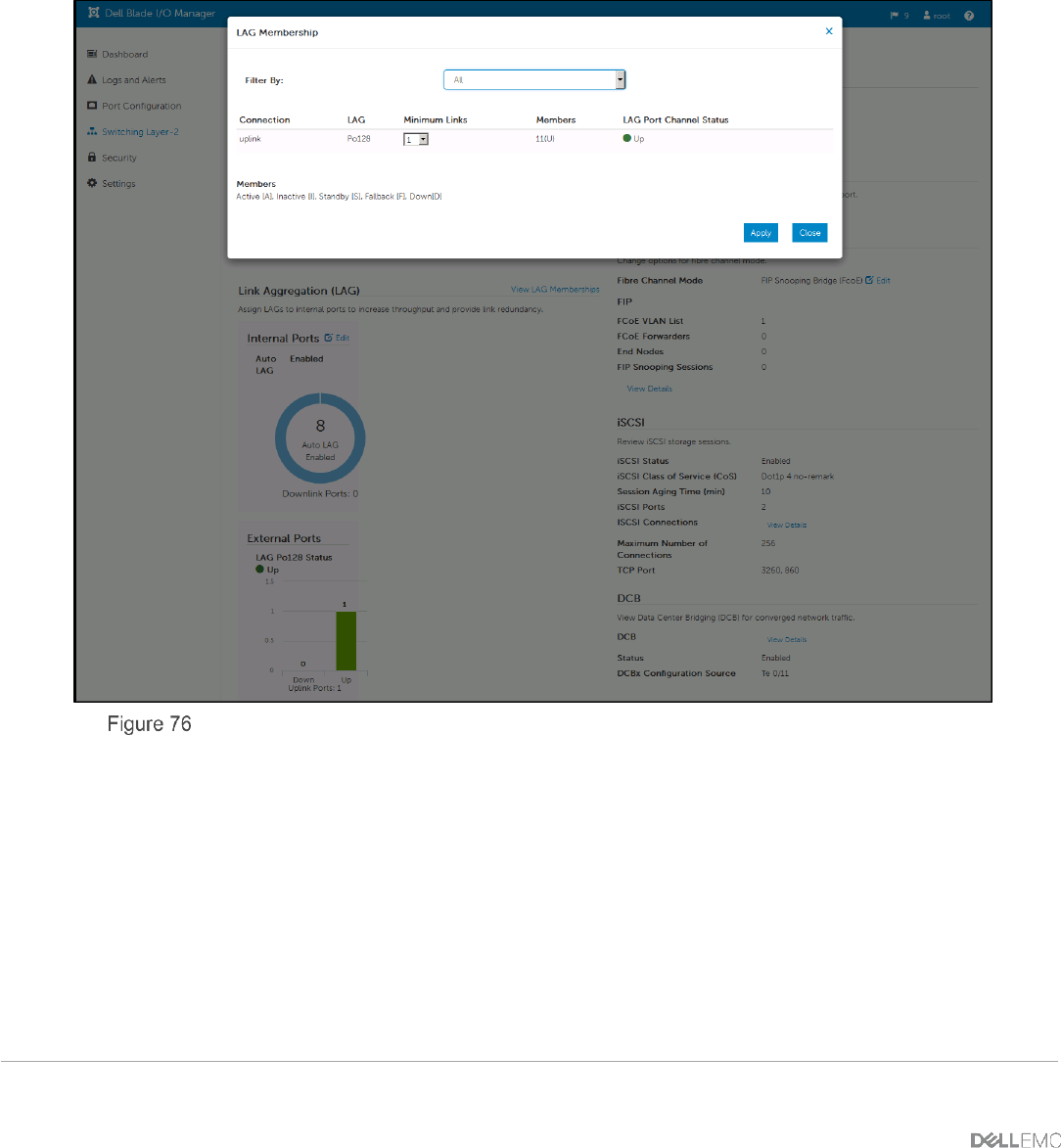

The Blade I/O Manager has a View LAG Membership feature (Figure 76) that is equivalent to the CLI
show interfaces port-channel 128 verification command (Figure 74). Access this feature by
going to Switching Layer-2 > View LAG Membership. View healthy LAGs from the main Switching
Layer-2 page.
Dell Blade I/O Manager LAG membership
