2 Hardware overview
This section briefly describes the hardware used to validate the examples in this guide. A complete listing of
hardware and components used is provided in Appendix B.

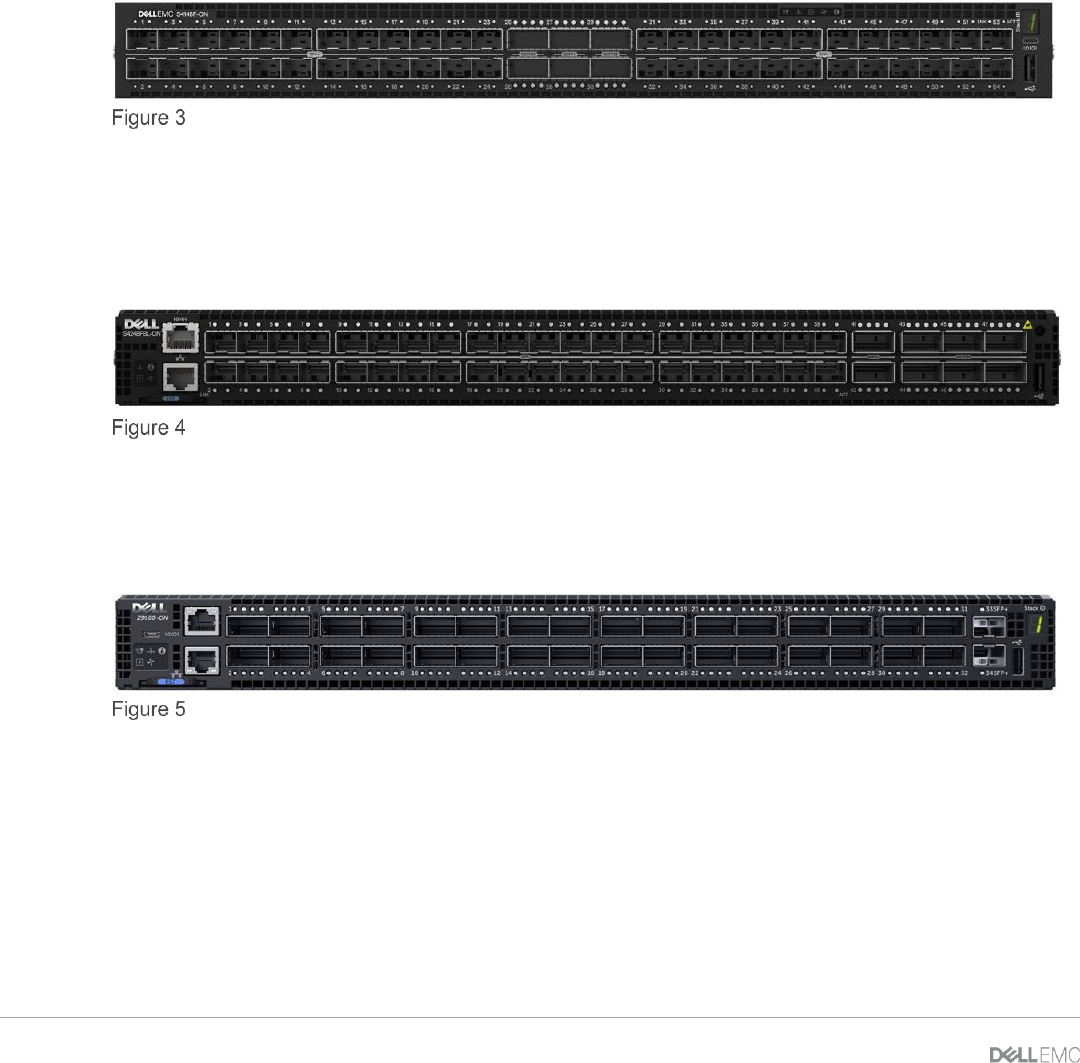

2.1 Dell EMC Networking S4148F-ON
The Dell EMC Networking S4148F-ON is a 1-Rack Unit (RU) switch with forty-eight 10GbE ports and four
10/25/40/50/100GbE ports. In this guide, Two S4148F-ON switches are used as a leaf switches in the
examples in this guide.
Dell EMC Networking S4148F-ON
2.2 Dell EMC Networking S4248FB-ON
The Dell EMC Networking S4248FB-ON is a 1-RU, multilayer switch with forty 10GbE ports, two 40GbE ports,
and six 10/25/40/50/100GbE ports. Two S4248FB-ON switches are used as leaf switches in the examples in
this guide.
Dell EMC Networking S4248FB-ON
2.3 Dell EMC Networking Z9100-ON
The Dell EMC Networking Z9100-ON is a 1-RU, multilayer switch with thirty-two 10/25/40/50/100GbE ports
plus two 10GbE ports. The Z9100-ON is used as a spine switch in examples in this guide.
Dell EMC Networking Z9100-ON
