Reference Guide

Solution overview
10 Reference Architecture of Dell EMC Ready Solution for HPC Life Sciences | Document 309

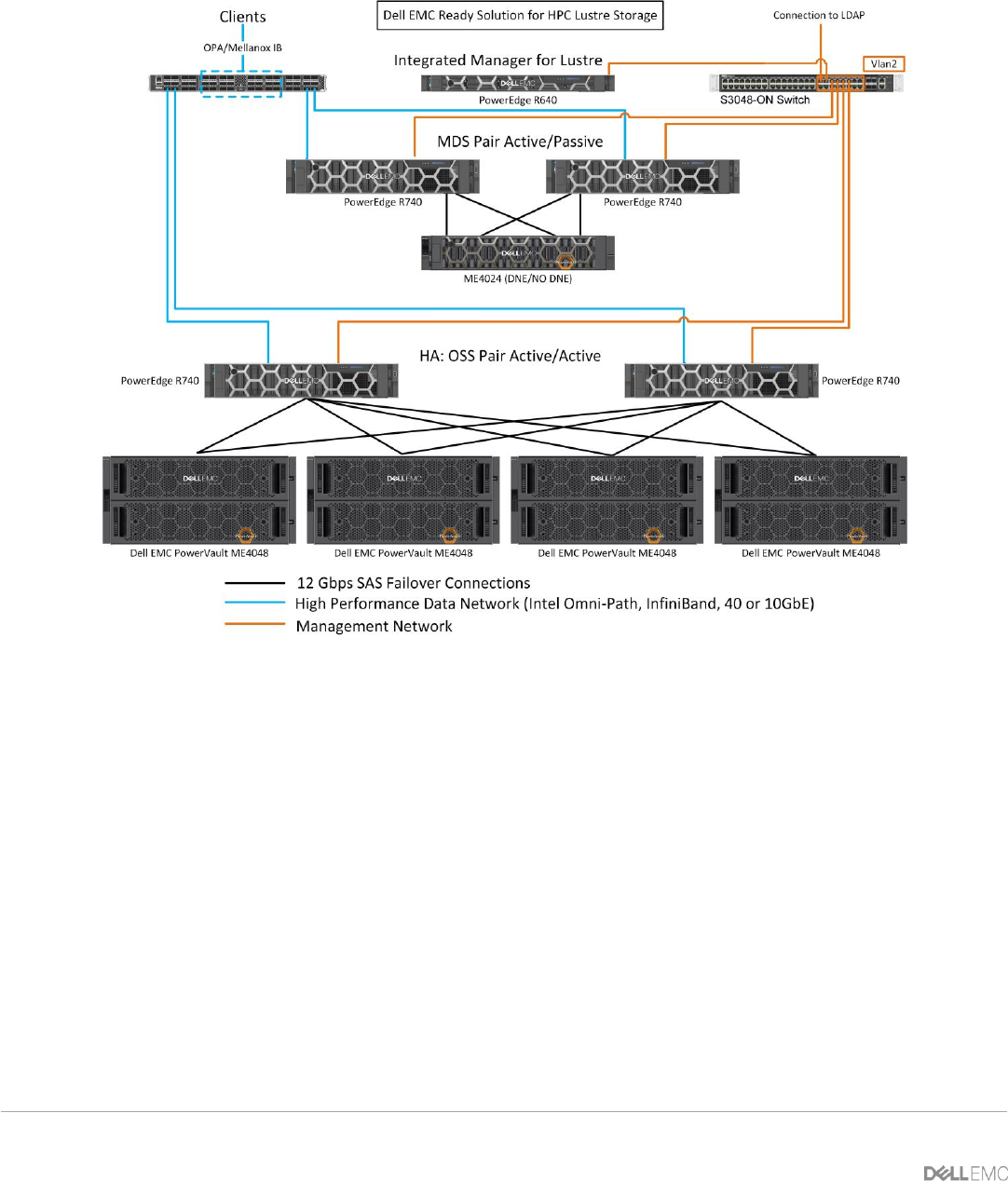

Figure 2 Dell EMC Ready Solution for HPC Lustre Storage, large base configuration including components
overview and network configurations.
• Dell EMC PowerEdge R640
- CPU: 2x Intel Xeon Gold 5118 with 12 cores at 2.3 GHz
- Memory: 12x 8 GB at 2666 MHz
• 2x Dell EMC PowerEdge R740 for OSS nodes
- CPU: 2x Intel Xeon™ Gold 6136 CPU with 12 cores at 3.0 GHz
- Memory: 24x 16 GB at 2666 MHz
- OSS SAS controller: 4 x Dell 12 Gbps SAS HBAs
- OSS Storage Array: 4x Dell EMC PowerVault ME4048
> Disks: 84-8 TB 7200 RPM NL SAS3 drives per ME4048 enclosure
• 2x Dell EMC PowerEdge R740 for MDS nodes
