The following is an example of the conguration steps in Microsoft Internet Explorer 10:
1 Go to Internet Explorer 10 > Internet Options > Security > Local Intranet, and click Sites.
The Local Intranet window opens.
2 Click Advanced.
3 Add your Power Center site into Local Intranet—for example, server1.dcm.dell.com.
Multiple domain environment
Set up a multiple domain environment with the following components:
• Domain Controller — There can be several Windows Active Directory (AD) domain controllers; for example, a parent domain and many
child domains.
• Power Center Server — This is the server with Power Center installed. It is an AD domain controller.
• Power Center Client — The client server connects to the network of the Power Center server.

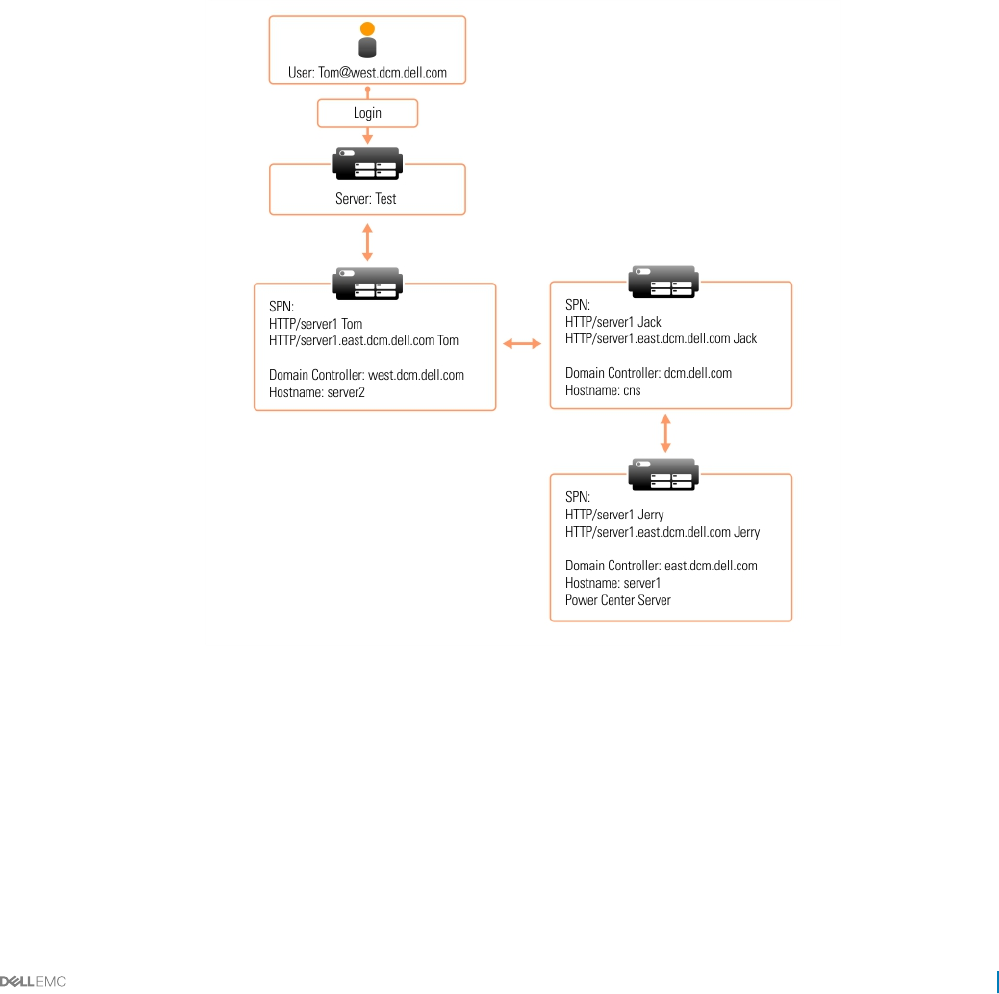

Figure 3. Multiple domain environment
To set up the Kerberos SSO multiple domain environment:
1 Install Power Center.
2 Congure your web browser for SSO.
Access control
47
