Back view of an MX7000 chassis in AR mode
You can view the health status and log information of each component in the chassis.
Prerequisites to view the MX7000 chassis information in the AR mode:
This feature is only available in the AR mode.
Ensure that OpenManage Mobile is connected to the chassis in the AR mode. For more information, see Monitor an MX7000 chassis
by using AR.
Ensure to maintain the Quick Sync 2 connection.
To view the details of an MX7000 chassis:
1.
Tap in the upper right corner.
The back view of the chassis is displayed.

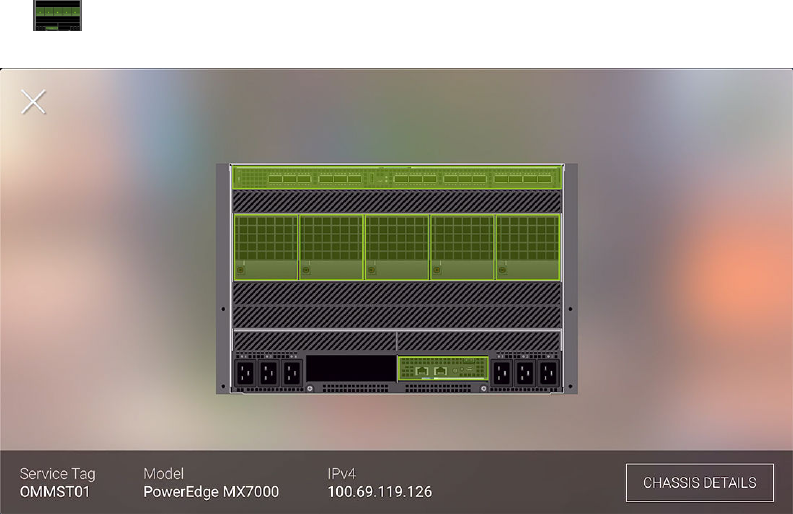

Figure 57. Back view of MX 7000 chassis
2. Tap any component in the chassis to view the details and log information.
You can view the following components and the details of that component:
IOMs—Name, type, health status, power state, model, Service Tag, fabric type, and firmware version
Fan—Name, type, health status, PWM, and speed
Management Modules—Name, type, health status, MSM state, and firmware version
You can view the logs—fault and hardware logs—of the component:
You can view the details of each log.
You can tap Logs to view all the hardware logs. By doing this, you exit the AR mode.
You can tap each of the details that are available in the upper and lower sections of the page to view the complete information.
Exit the AR mode
Tap the exit button in the upper left corner.
The OpenManage Mobile home page is displayed.
