83 Dell EMC PowerEdge MX SmartFabric Configuration and Troubleshooting Guide

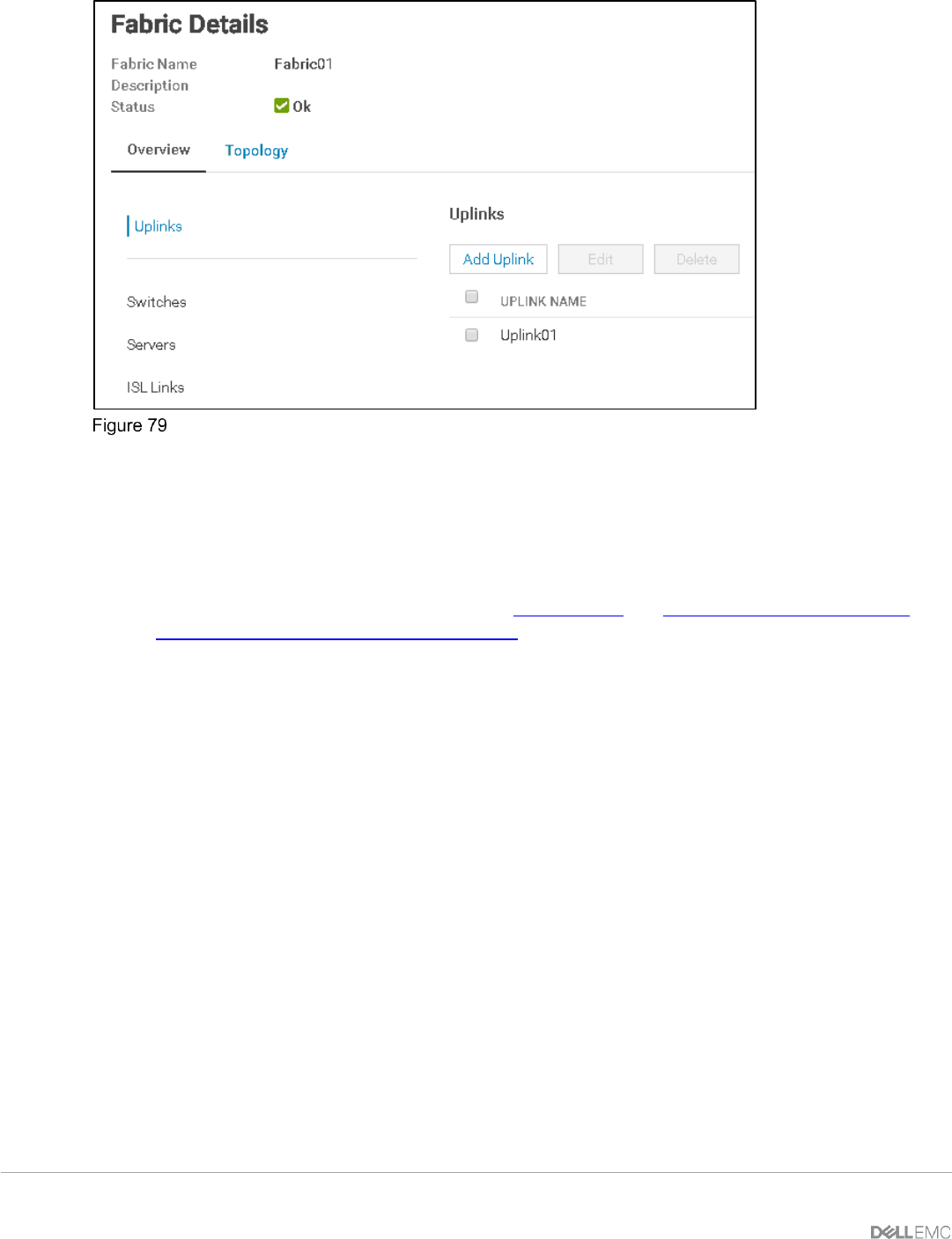

Healthy fabric
9.6 Troubleshooting FC/FCoE
The following points can be verified while troubleshooting FC or FCoE errors:
• Ensure that the firmware and drivers are up to date on the CNAs.
• Check the storage guide to ensure that the CNAs are supported by the storage used in the
deployment. For qualified support matrix, see elab navigator and Dell EMC Storage Compatibility
Matrix for SC Series, PS Series and FS Series.
• Verify that port group breakout mode is appropriately configured.
• Ensure that the FC port-groups broken out on the unified ports in MX9116n switches are made
administratively up once the ports are changed from Ethernet to FC.
• MX9116n switches operating in SmartFabric mode support various commands to verify the
configuration. Use the following commands to verify FC configurations from MX9116n CLI:
OS10# show fc
alias Show FC alias
ns Show FC NS Switch parameters
statistics Show FC Switch parameters
switch Show FC Switch parameters
zone Show FC Zone
zoneset Show fc zoneset
Use the following commands to verify FCoE configurations from MX9116n CLI:
OS10# show fcoe
enode Show FCOE enode information
fcf Show FCOE fcf information
sessions Show FCOE session information
statistics Show FCOE statistics information
system Show FCOE system information
vlan Show FCOE vlan information
