8.3 View port status
The OME-M console can be used to show the port status. In this example, the figure displays ports for an
MX9116n FSE.
1. Open the OME-M console.
2. From the navigation menu, click Devices > I/O Modules.
3. Select an IOM and click the View Details button to the right of the inventory screen. The IOM
overview for that device, displays.
4. From the IOM Overview, click Hardware.
5. Click to select the Port Information tab.

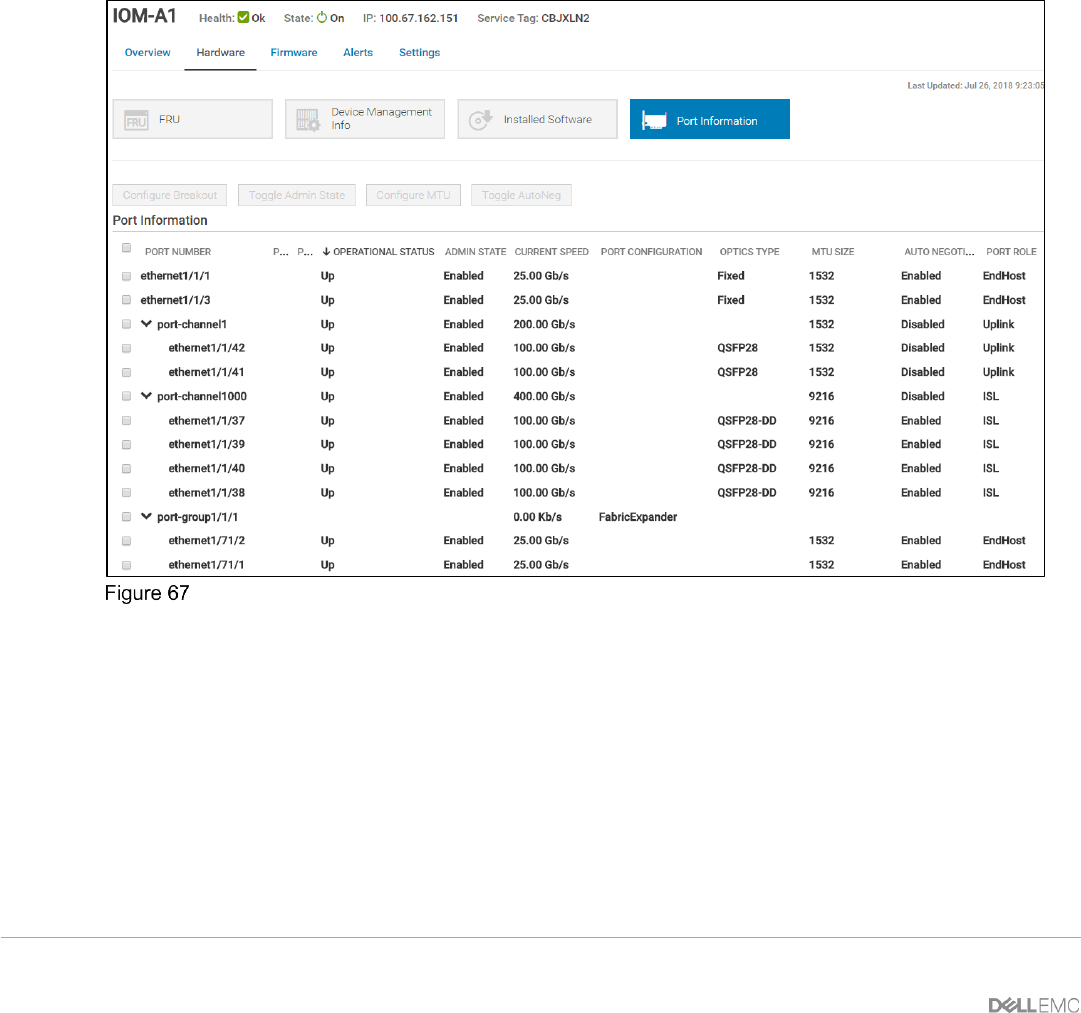

Figure 67 shows ethernet 1/1/1, 1/1/3, 1/71/1, and 1/72/1 in the correct operational status (Up). These
interfaces correspond to the MX740c compute sleds in slots 1 and 2 in both chassis. The figure also shows
the VLT connection (port channel 1000) and the uplinks (port channel 1) to the Z9100-ON leaf switches.
IOM Port Information
