8 Validating the SmartFabric deployment
8.1 View the MCM group topology
The OME-M console can be used to show the physical cabling of the SmartFabric.
1. Open the OME-M console.
2. In the left pane click View Topology.
3. Click the lead chassis and then click Show Wiring.
4. The icons can be clicked to show cabling.

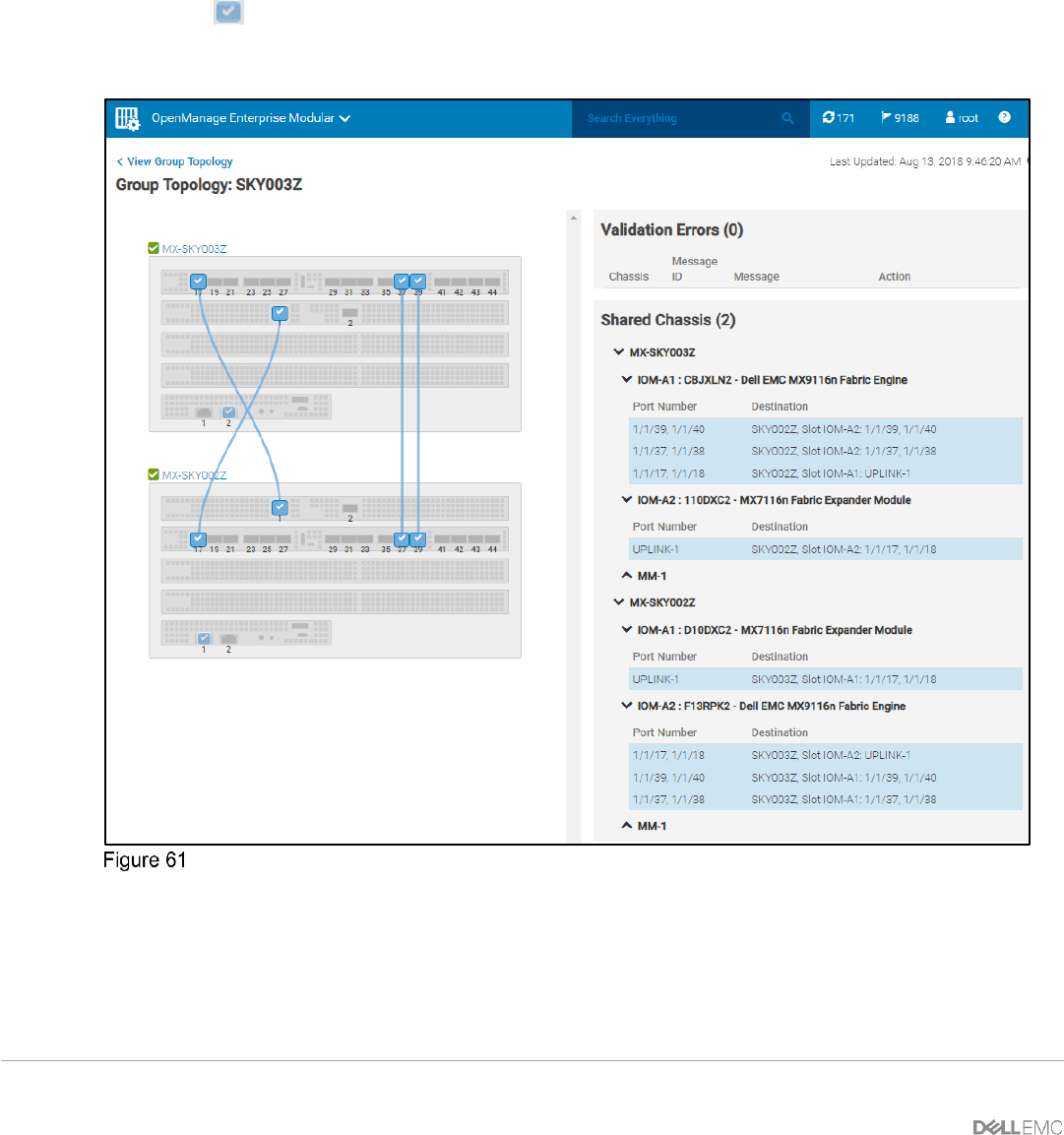

Figure 61 shows the current wiring of the SmartFabric.
SmartFabric cabling
