65 Dell EMC PowerEdge MX SmartFabric Configuration and Troubleshooting Guide
1. From the switch management page of one of the switches in the fabric, choose Firmware > Update
Firmware. In the Update Firmware dialog box, browse and select the appropriate DUP file.

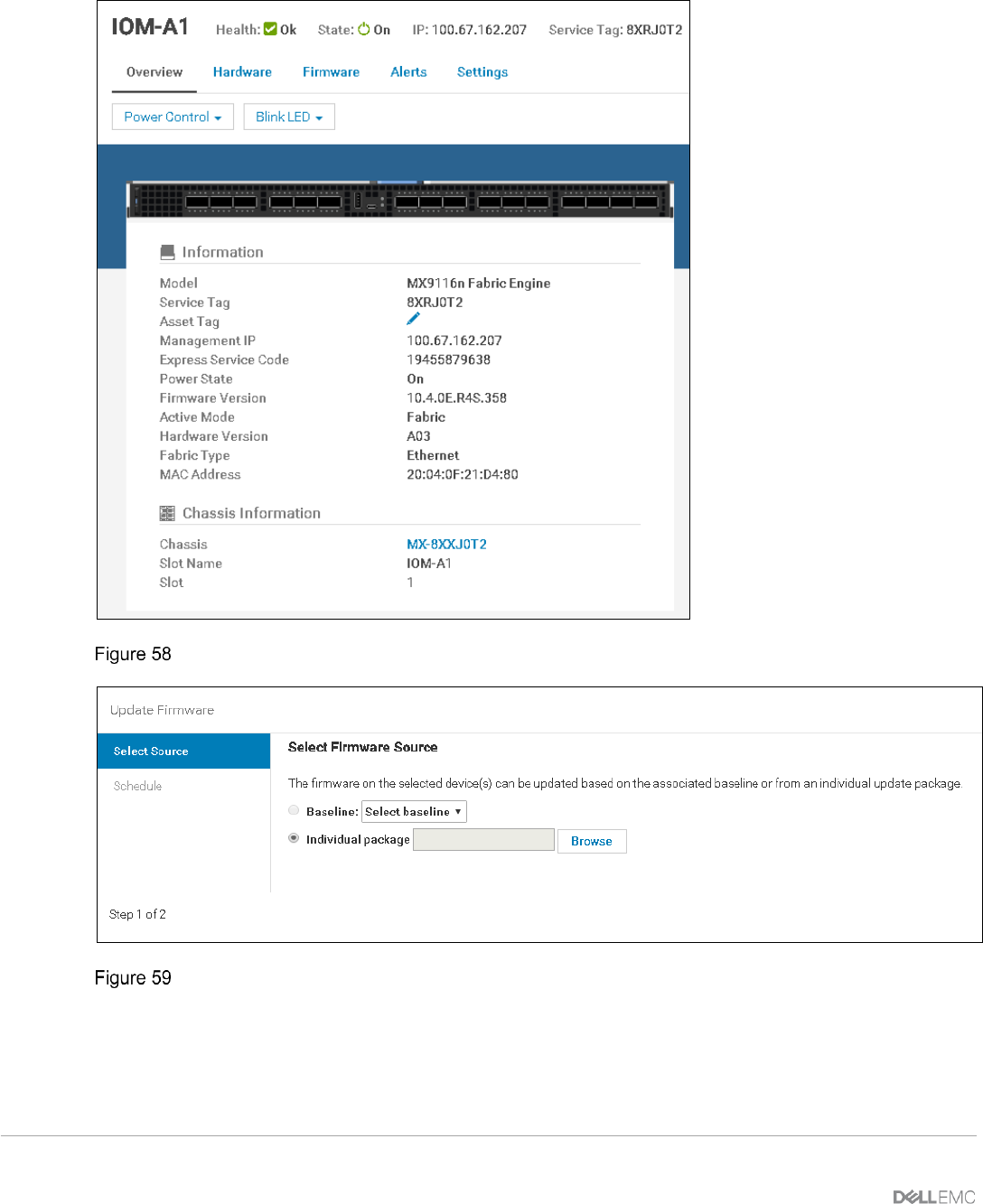

Switch management page
Update firmware dialog box
2. Once the file is uploaded, select the check box next to the file and click Next.
3. Select Update Now and then click Finish.
