64 Dell EMC PowerEdge MX SmartFabric Configuration and Troubleshooting Guide

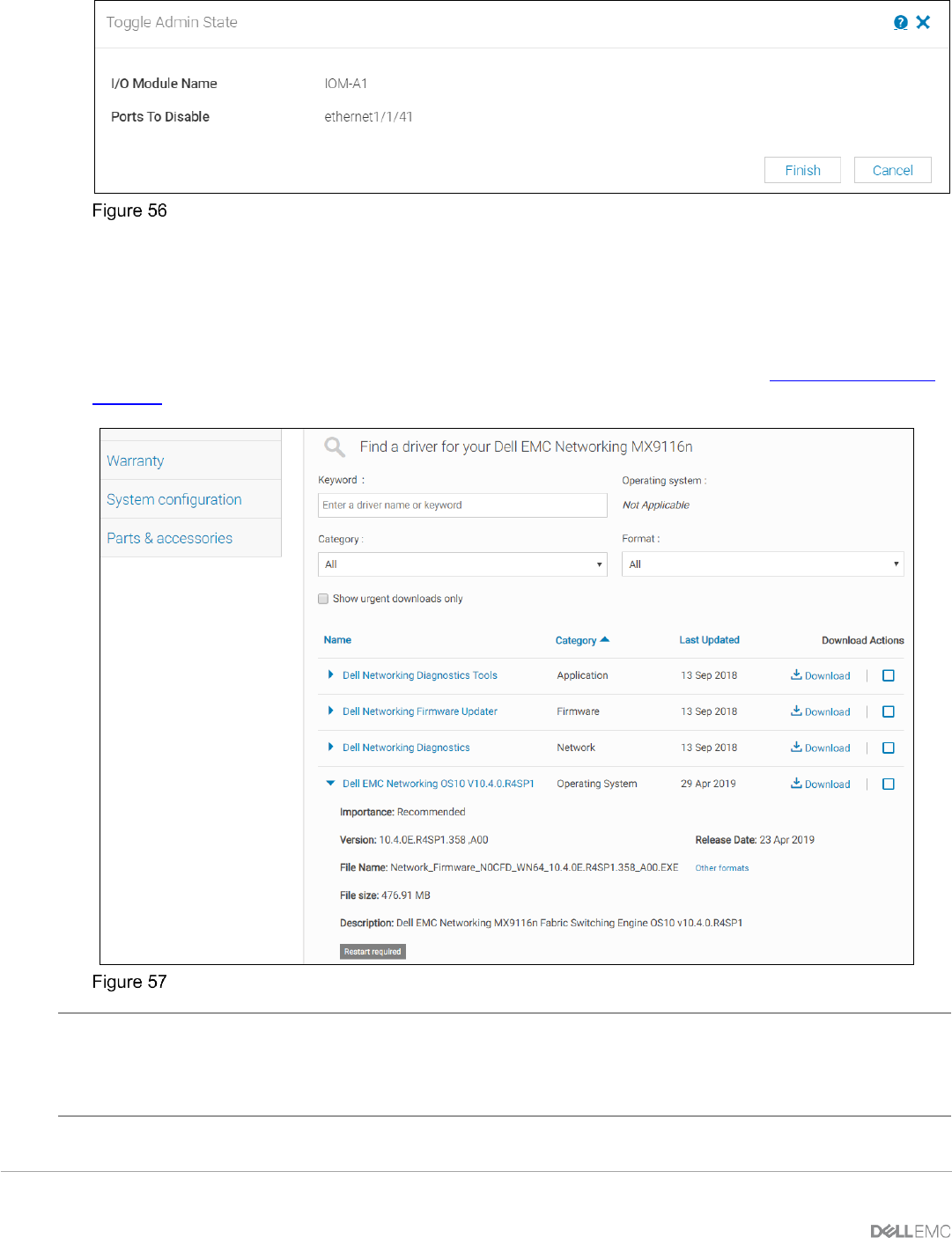

Toggle Admin State
7.3 Upgrade Dell EMC SmartFabric OS10
Upgrading the IOMs in the fabric can be done using the OME-M console. The upgrade is carried out using a
Dell Update Package (DUP). A DUP is a self-contained package format that updates a single element on a
system. Using DUPs, you can update a wide range of system components simultaneously and apply scripts
to similar sets of Dell systems to levels. The OS10 DUP is available for download from Support for Dell EMC
Products.
Download DUP file for MX9116n FSE
Note: If an IOM is in SmartFabric mode, all switches that are part of the fabric will be updated. Do not select both
switches in the fabric to be updated.
If an IOM is in Full Switch mode, the firmware upgrade is completed only on the specific IOMs selected.
To upgrade the IOMs that are part of a fabric, follow the steps below:
