62 Dell EMC PowerEdge MX SmartFabric Configuration and Troubleshooting Guide
Advanced Settings
7.2 Configuring Ethernet ports
The MX switches can be accessed using the OME-M console. Various operations such as port breakout,
altering the MTU size, enabling/disabling auto negotiation etc. Follow the below steps to gain insight into
modifying various entities.
Note: In SmartFabric mode, configuring interfaces via the CLI should not be performed. Use the OME-Modular
GUI
1. From the switch management page, choose Hardware > Port Information.

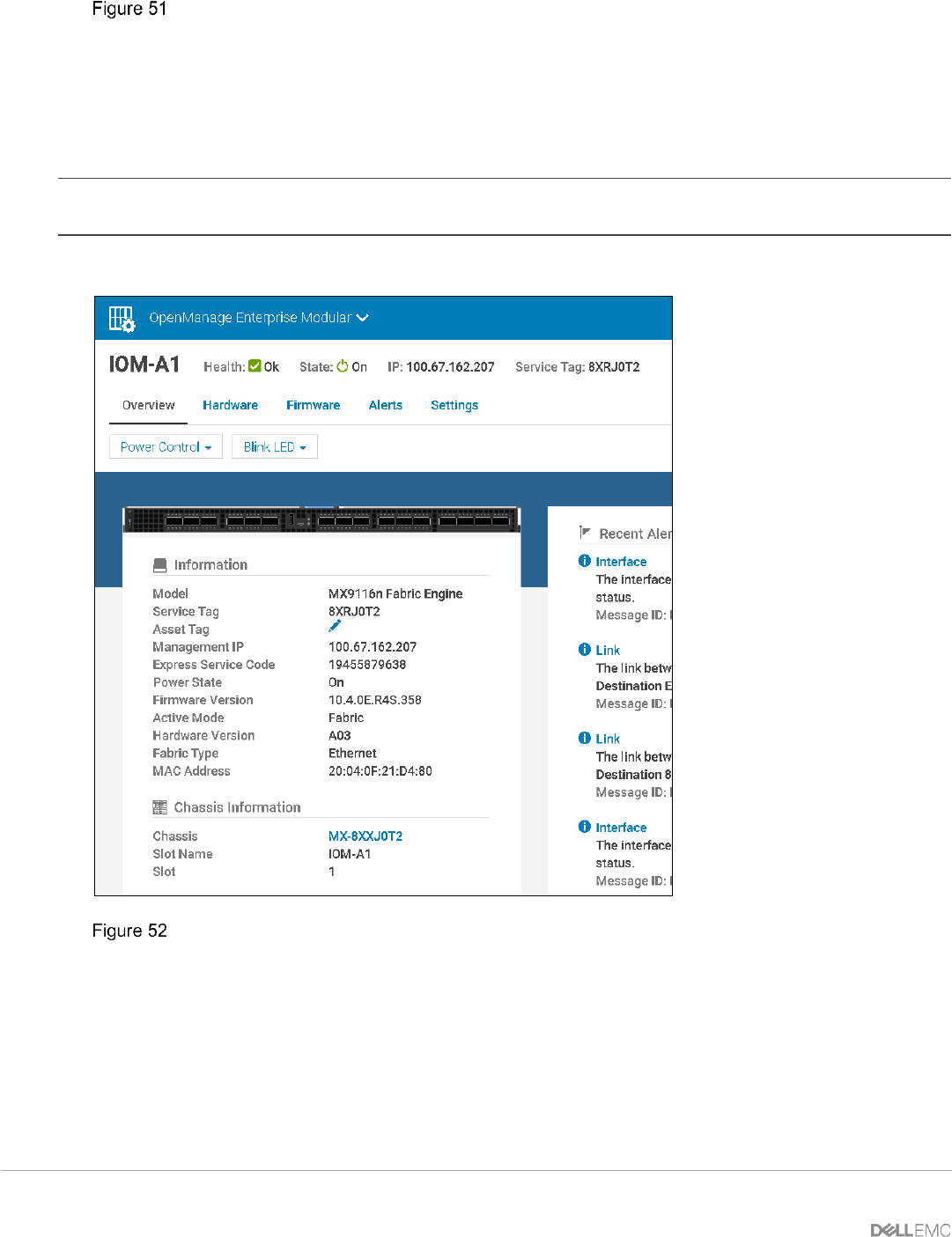

IOM Overview page on OME-M
