60 Dell EMC PowerEdge MX SmartFabric Configuration and Troubleshooting Guide

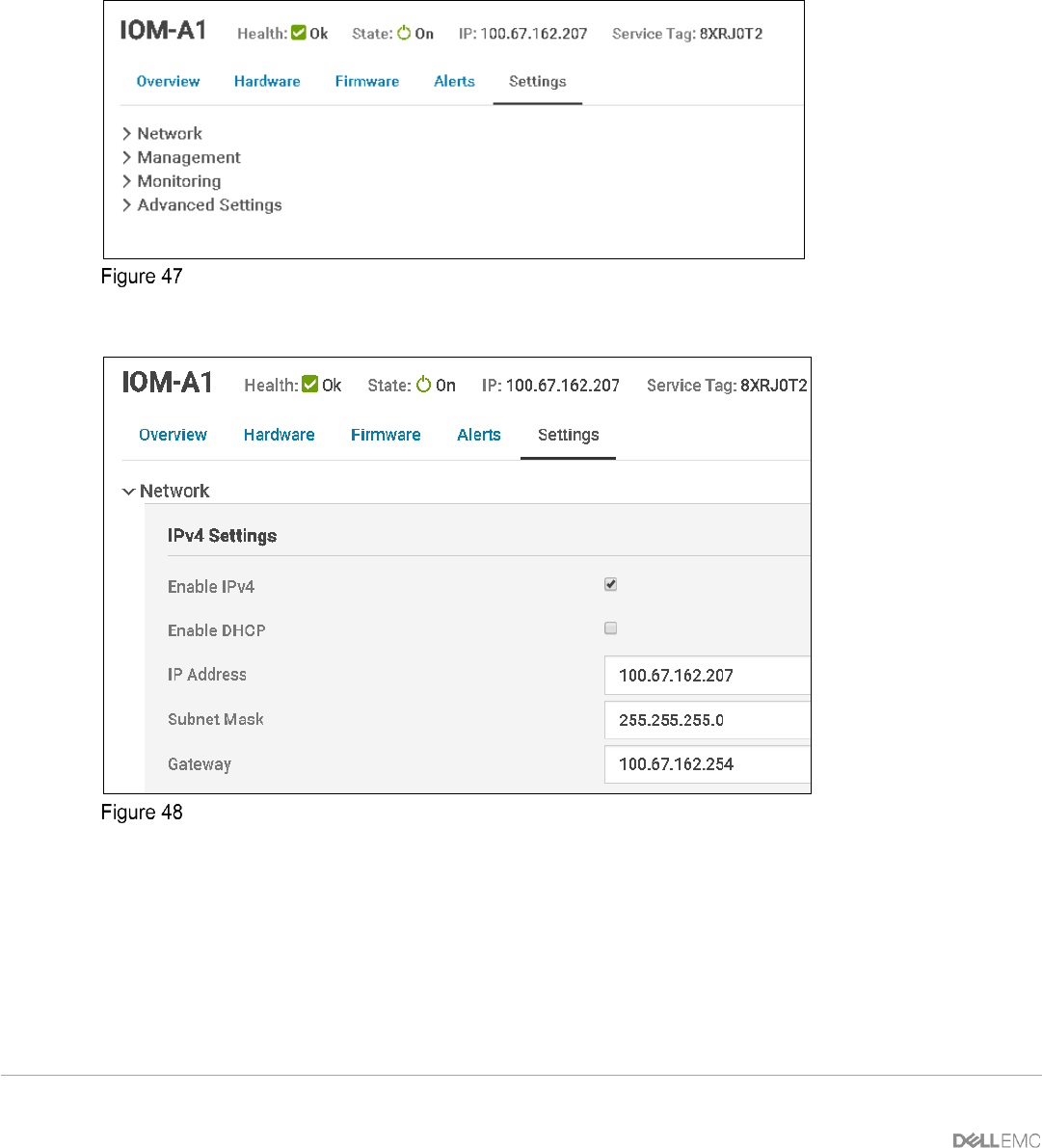

7.1.5 Settings tab
The Settings tab provides options to configure the following settings for the IOMs:
• Network
• Management
• Monitoring
• Advanced Settings
Settings Tab
The Network option includes configuring IPv4, IPv6, DNS Server and Management VLAN settings.
Network Settings
