7 Switch operations
PowerEdge MX switches can be managed using the OME-M console. From the Switch Management page,
you can view activity, health, and alerts, as well as perform operations such as power control, firmware
update, and port configuration. Some of these operations can also be performed in Full Switch mode.
7.1 Switch management page overview
To get to the switch management page, follow these steps:
1. Open the OME-M console
2. From the navigation menu, click Devices > I/O Modules.
3. Select the desired switch. In this example, MX9116n FSE IOM-A1 is selected.

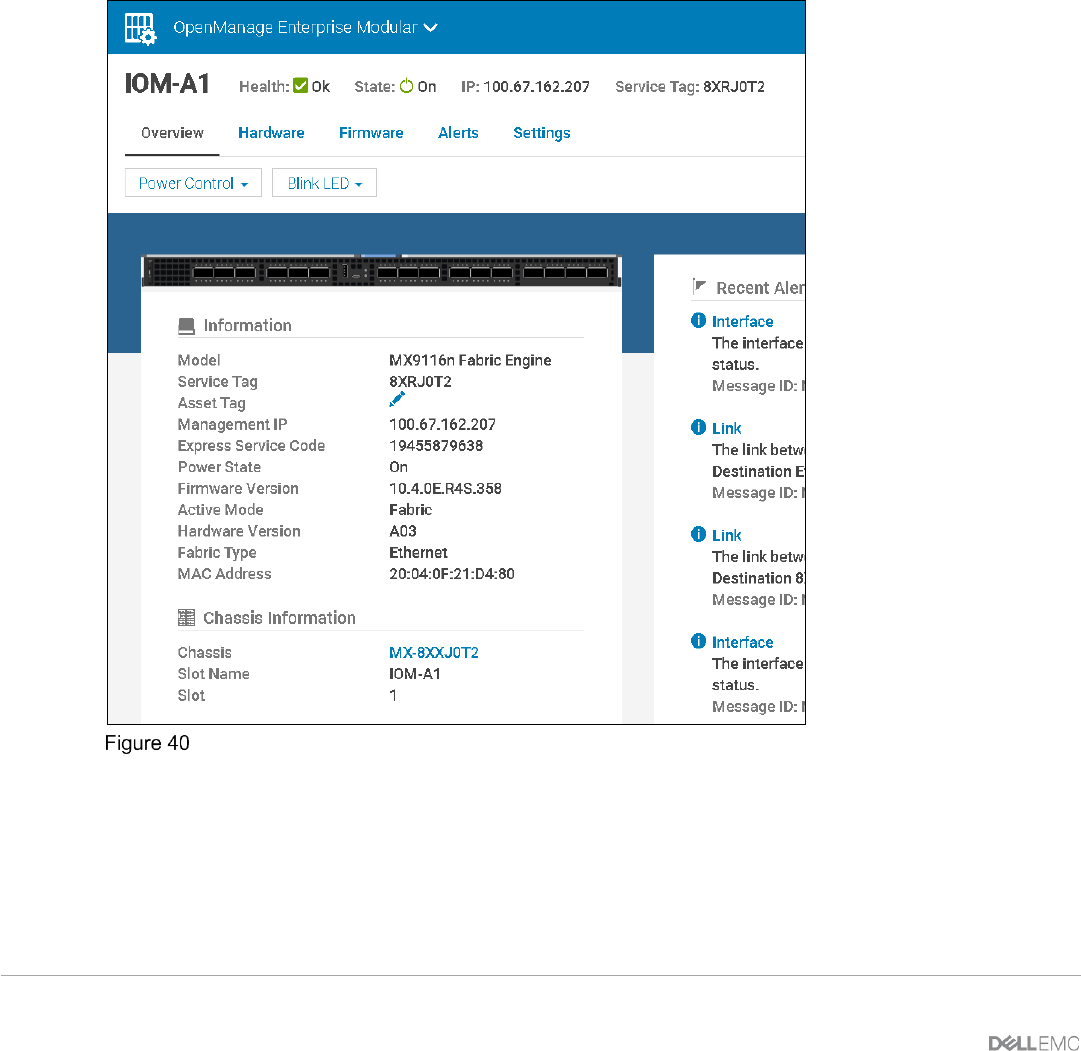

IOM Overview page on OME-M
7.1.1 Switch overview
The Overview page provides a convenient location to view pertinent data on the IOM such as:
• Chassis information
• Recent Alerts
• Recent Activity
• IOM Subsystems
