7. Edit the uplink ports on the MX switches that connects to the upstream switches. In this example,
ports 41 and 42 on the MX9116n switches that connects to upstream switches are displayed.
Note: Care should be taken to modify the uplink ports on both MX switches. Select the IOM to display the
respective uplink switch ports.

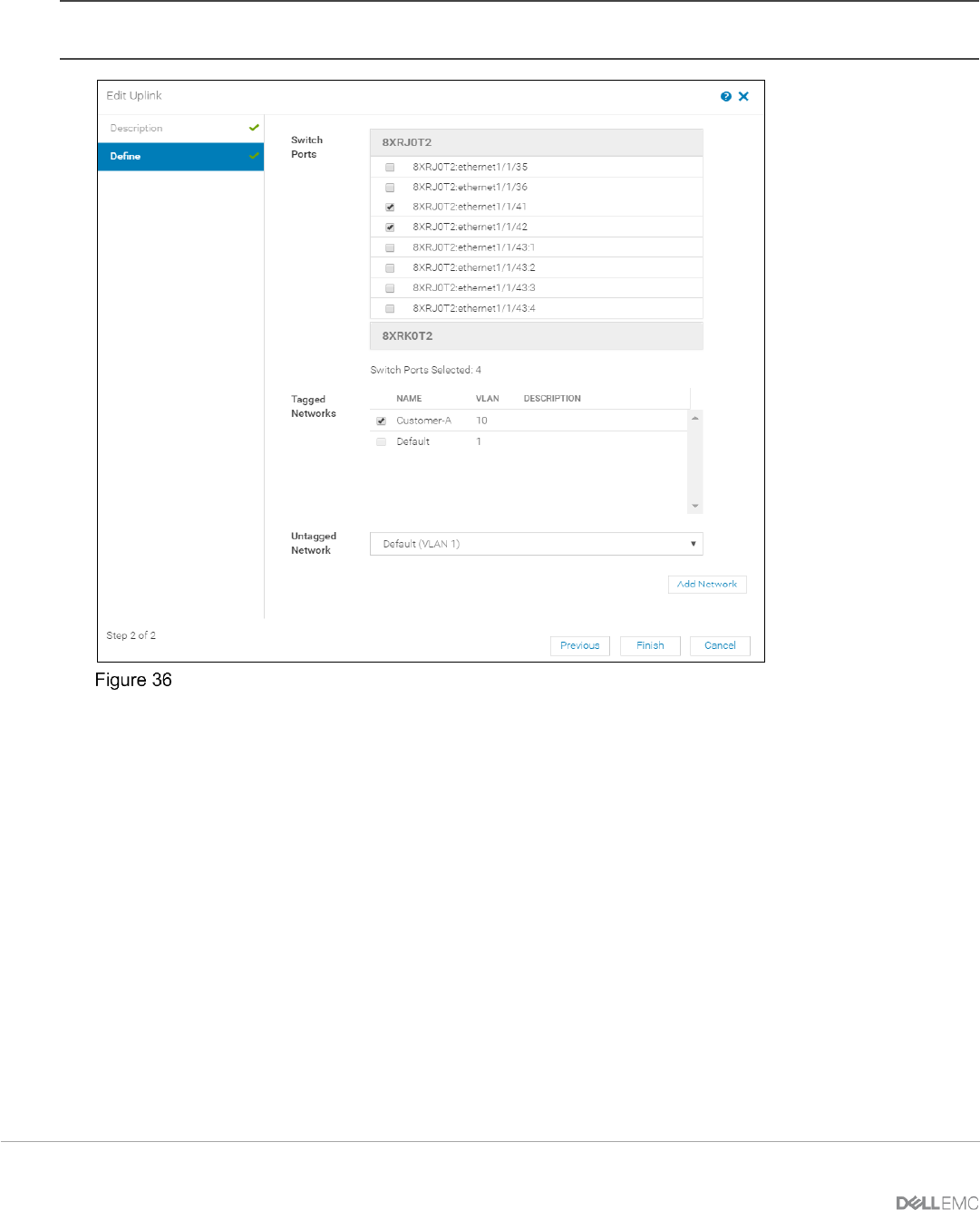

Edit uplink ports and VLAN networks
8. If desired, modify the tagged and untagged VLANs.
9. Click Finish.
6.4 Editing VLANs on a deployed server
The OME-M Console is used to add/remove VLANs on the deployed servers in a SmartFabric. The following
illustrates the steps to add/remove VLANs on the deployed servers.
1. Open OME-M Console.
2. From the navigation menu, click Devices > Fabric.
3. Select the fabric.
4. Select Servers from the left pane.
