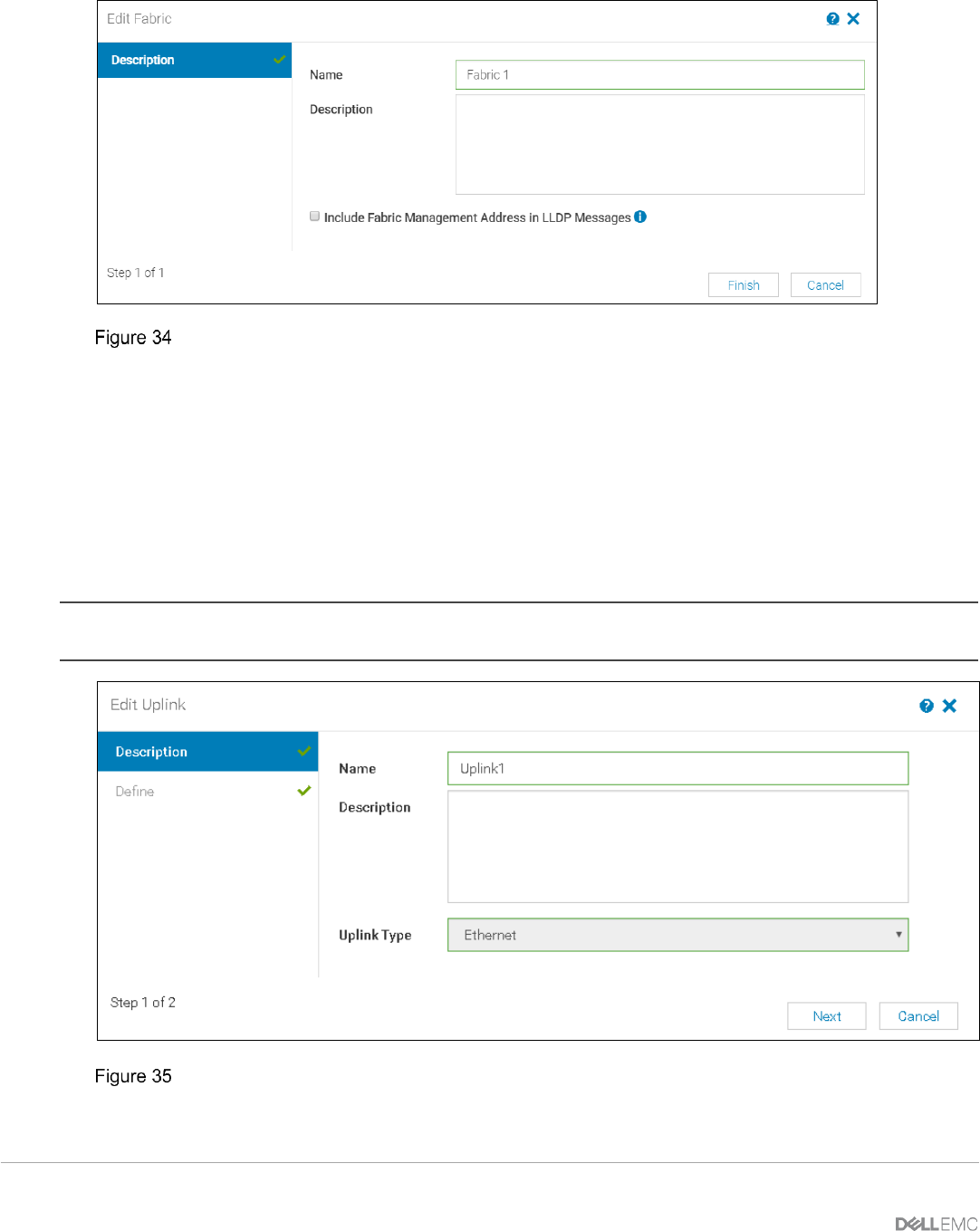

4. In the Edit Fabric dialog box, change the name and description as desired. Click Finish.
Edit Fabric dialog box
6.3 Editing uplinks
Editing the uplinks on the created fabric is done using the following steps:
1. Open the OME-M console.
2. From the navigation menu, click Devices > Fabric.
3. Select the fabric.
4. Select the Uplink to edit and click Edit. In this example, Uplink1 is selected.
5. In the Edit Uplink dialog box, modify the Name and Description as desired.
Note: The uplink type cannot be modified once the fabric is created. If the uplink type needs to be changed after
the fabric is created, delete the uplink and create a new uplink with the desired uplink type.
Edit Uplink dialog box
6. Click Next.
