48 Dell EMC PowerEdge MX SmartFabric Configuration and Troubleshooting Guide

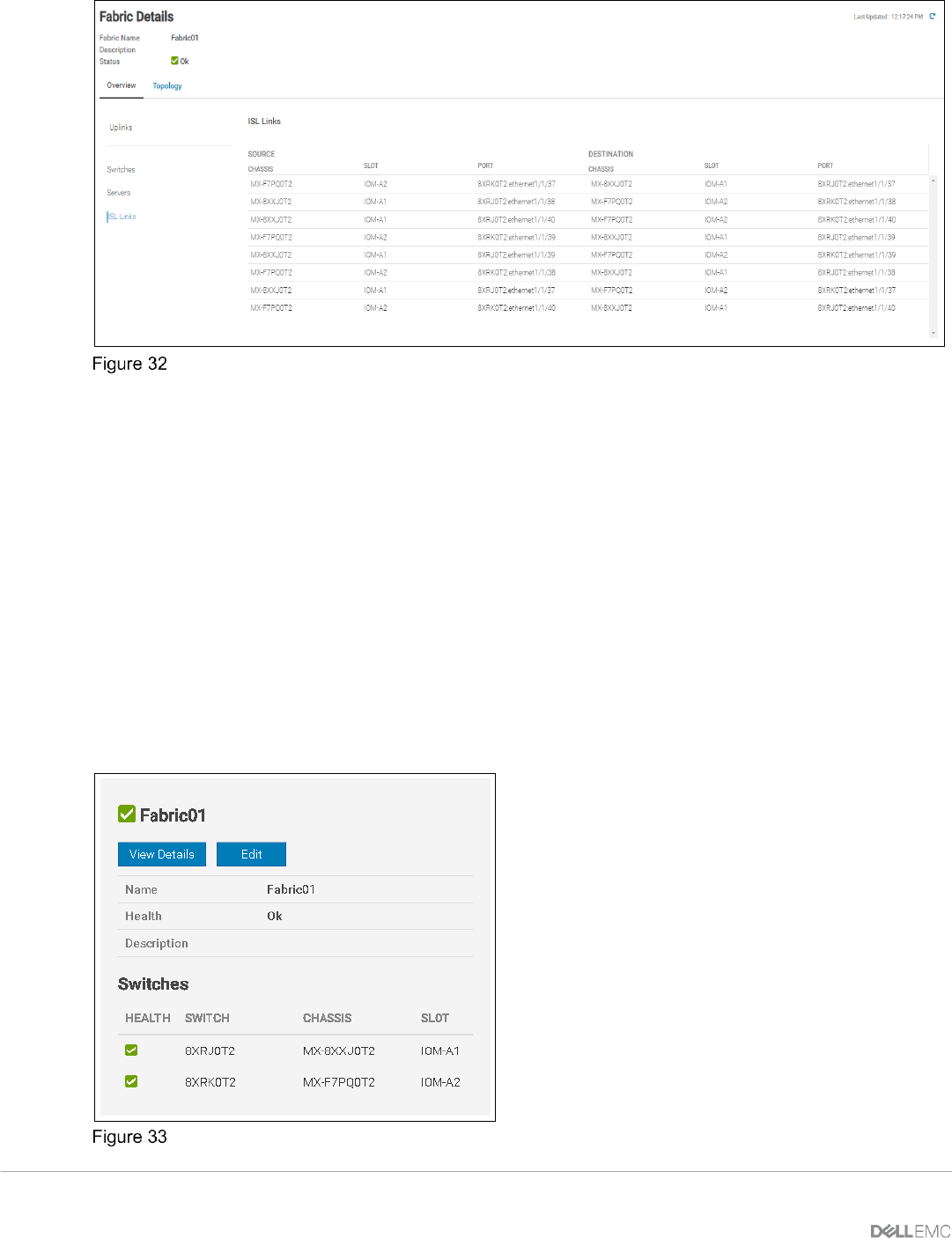

ISL Links
6.2 Editing the fabric
A fabric has four components:
• Uplinks
• Switches
• Servers
• ISL Links
Editing the fabric discussed in this section includes editing the fabric name and description.
To edit the name of the fabric that was created, follow the steps below:
1. Open the OME-M console.
2. From the navigation menu, click Devices > Fabric.
3. On the right, Click the Edit button.
Edit fabric name and description
