47 Dell EMC PowerEdge MX SmartFabric Configuration and Troubleshooting Guide

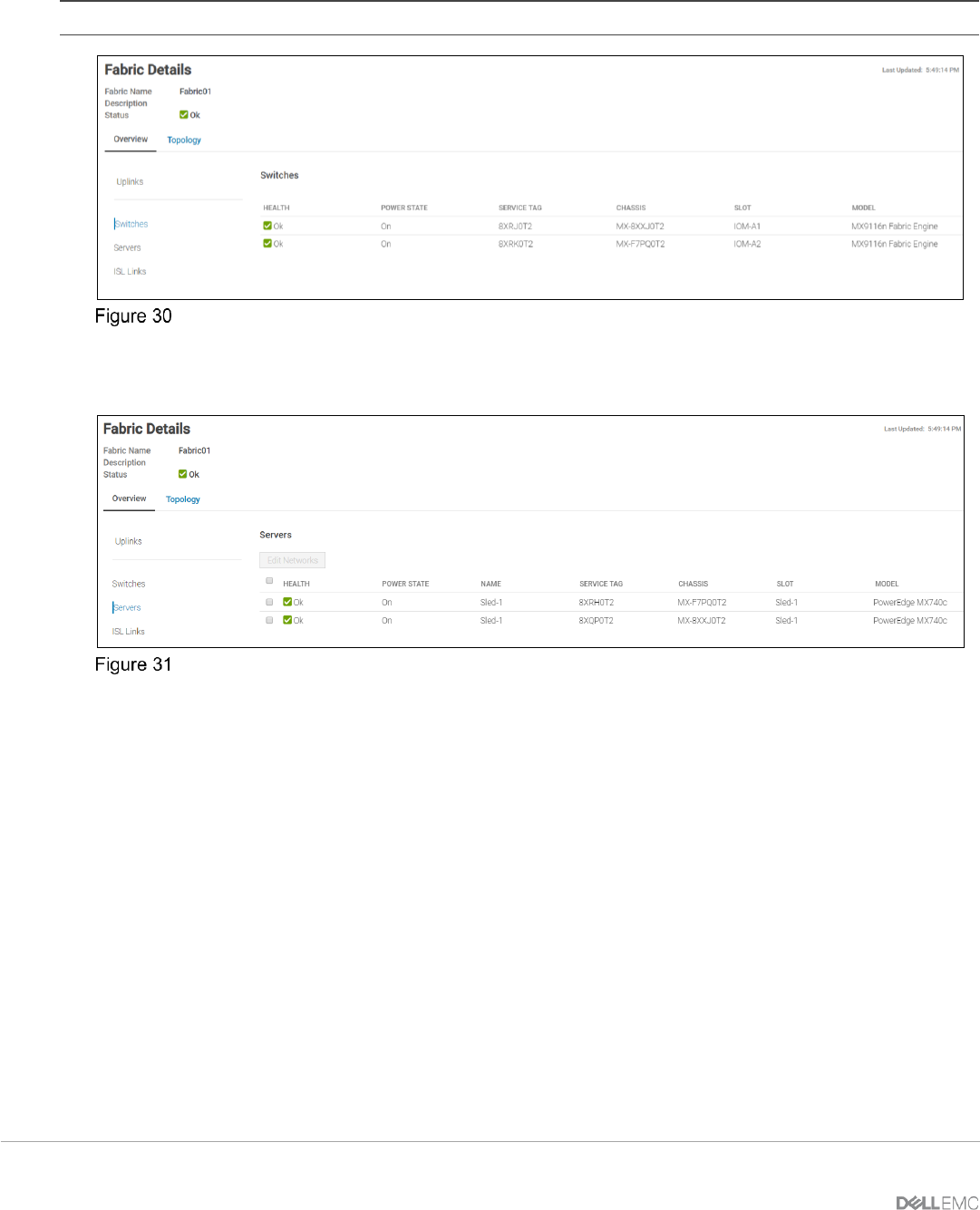

Switches are the I/O Modules that are part of the fabric. In this example, the fabric has two MX9116n
switches.
Note: Fabric Expander Modules are transparent and therefore do not appear on the Fabric Details page.
Switches
Servers are the compute sleds that are part of the fabric. In this example, two PowerEdge MX740c compute
sleds are part of the fabric.
Servers
ISL Links are the VLT interconnects between the two switches. The ISL links should be connected on port
groups 11 and 12 on MX9116n switches, and ports 9 and 10 on MX5108n switches. This is a requirement
and failure to connect the defined ports will result in a fabric validation error.
