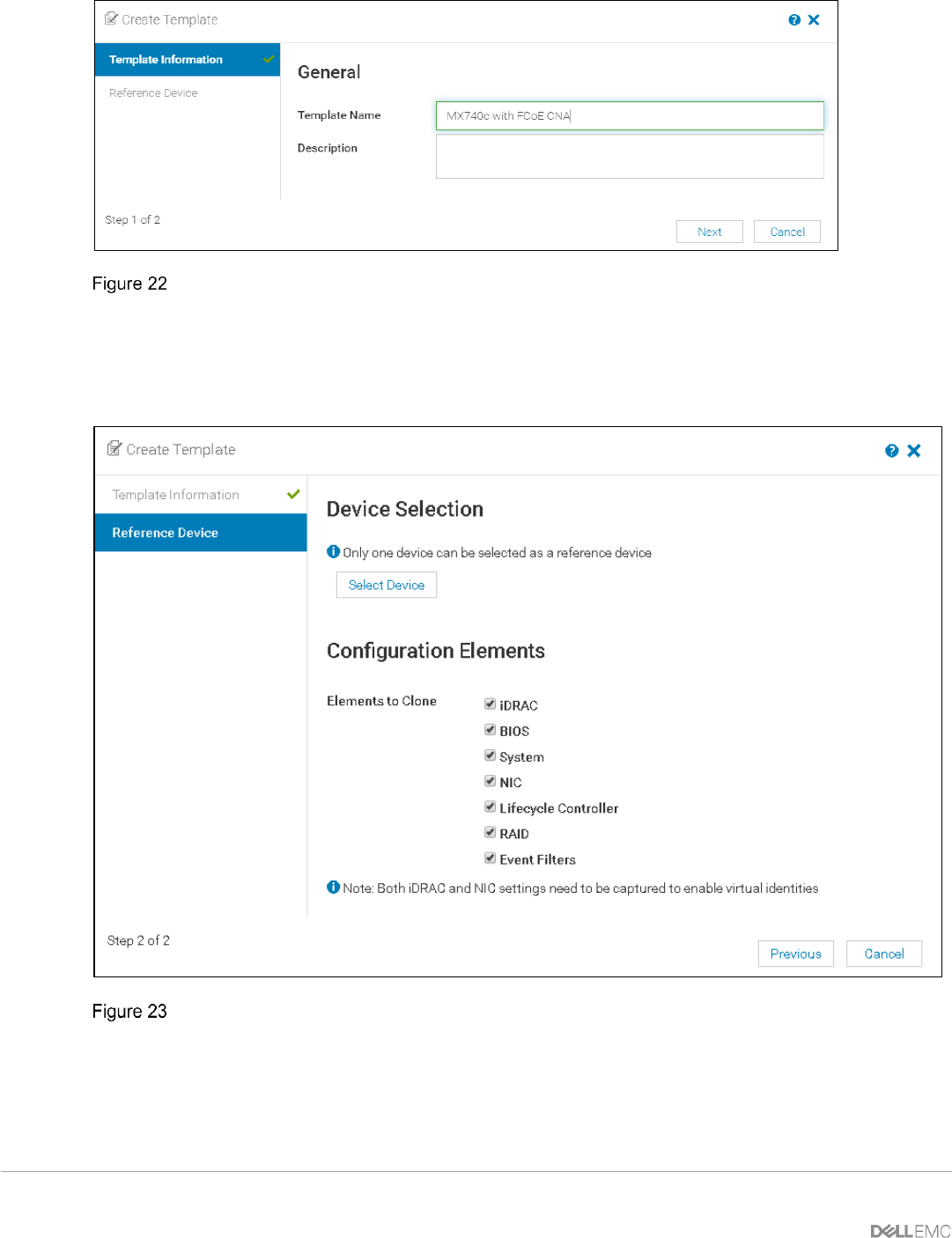

Create Template dialog box
5. Optionally, enter a description in the Description box, then click Next.
6. In the Device Selection section, click Select Device.
7. From the Select Devices window, choose the server previously configured, then click Finish.
8. From the Elements to Clone list, select all the elements, and then click Finish.
Select the elements to clone
A job starts and the new server template displays on the list. When complete, the Completed successfully
status displays.
