25 Dell EMC PowerEdge MX SmartFabric Configuration and Troubleshooting Guide

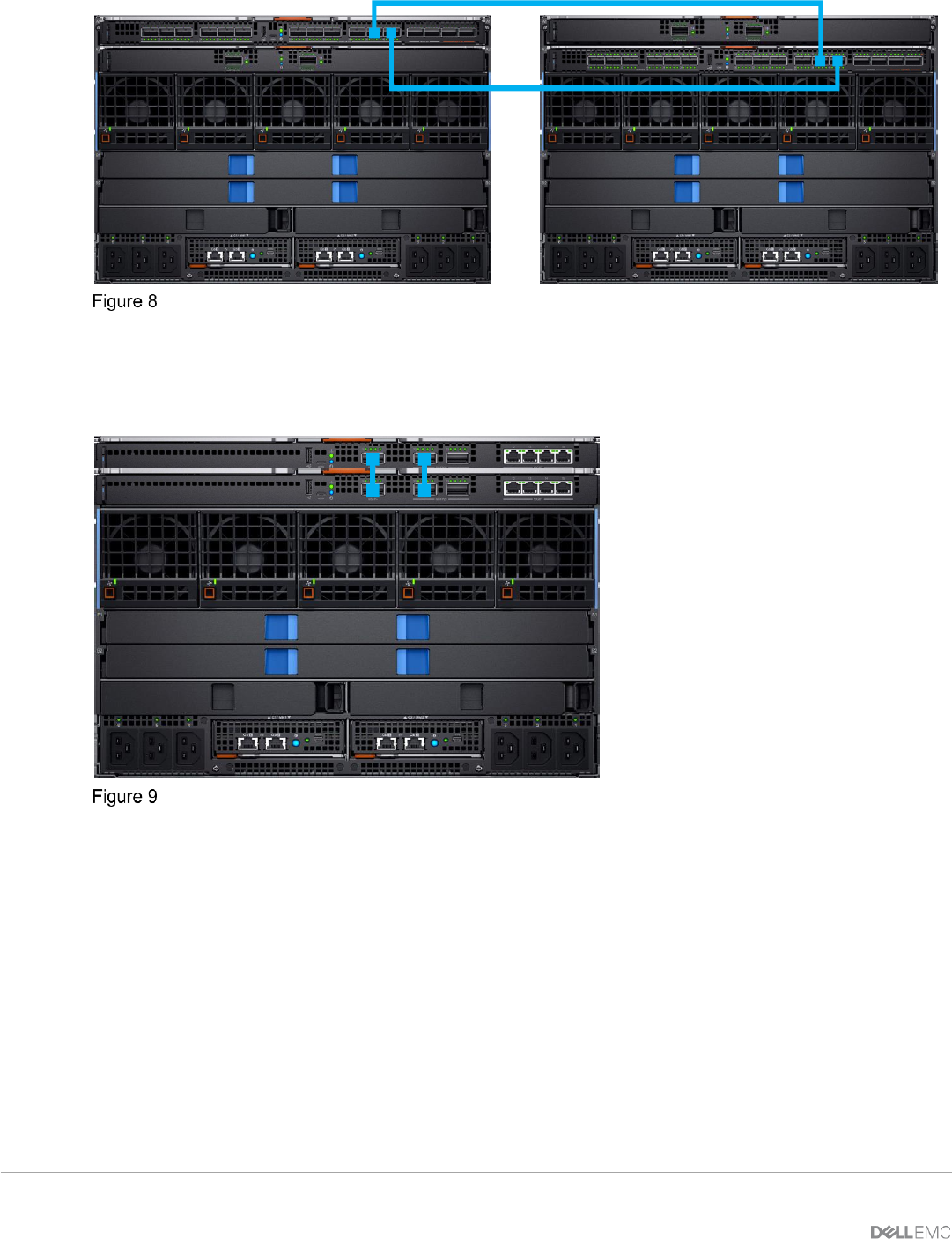

IOM placement – 2 x MX9116n in different chassis
3.5.2 Two MX5108n Ethernet switches in the same chassis
The MX5108n Ethernet Switch is only supported in single chassis configurations, with the switches in either
slots A1/A2 or slots B1/B2. A SmartFabric cannot include a switch in Fabric A and a switch in Fabric B.
IOM placement – 2 x MX5108n in the same chassis
