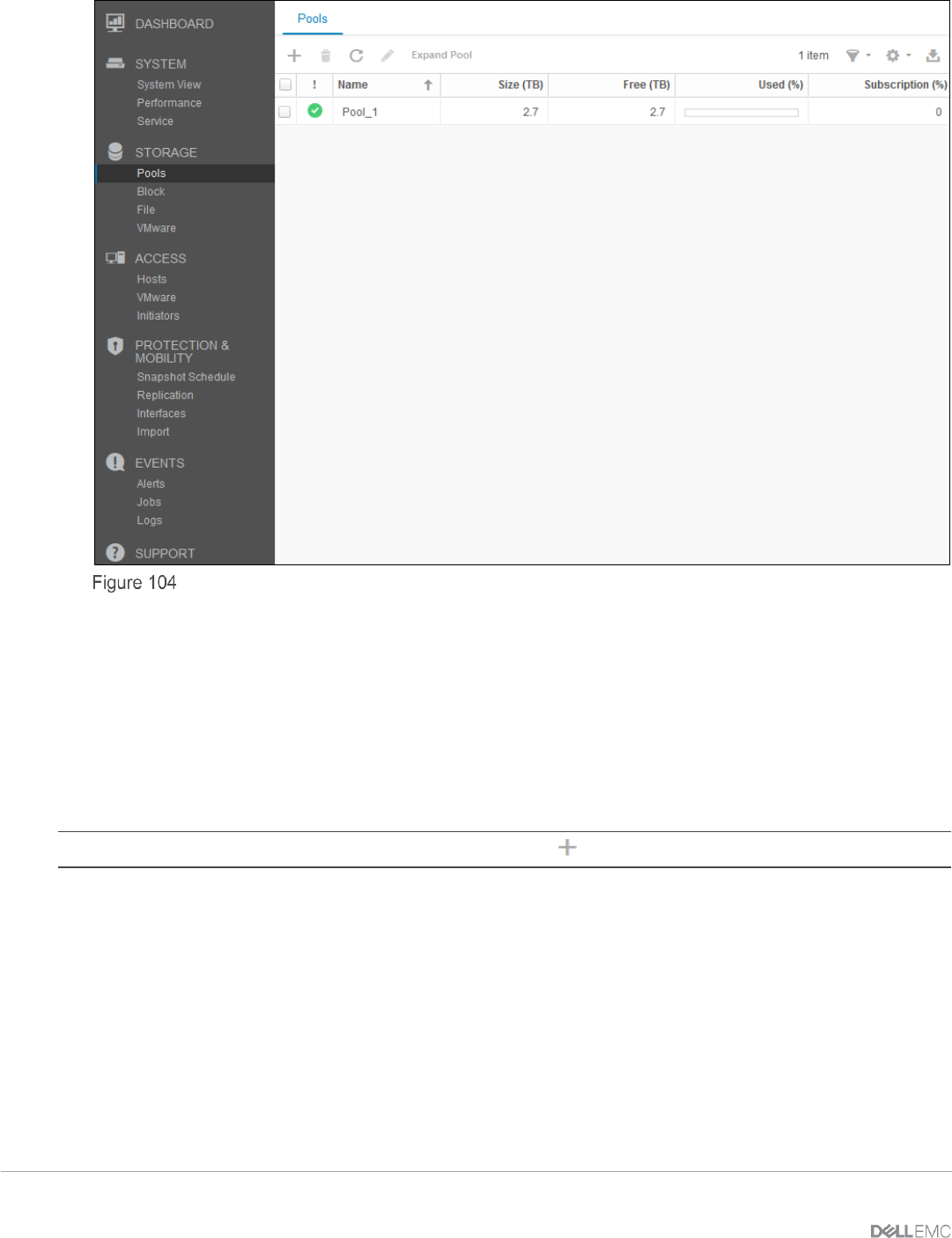

Storage pool created
B.3.2 Add hosts
1. In the Unisphere left pane under ACCESS, select Hosts.
2. On the Hosts tab, click the (+) icon, then click Host.
3. Enter the Name of the server in the field provided, then click Next.
4. Select the Initiator IQN/WWN checkbox in the Discovered Initiators panel.
5. Click Next.
6. Click Finish in the Review the host configuration page.
Note: Additional hosts may be added as needed by clicking the icon from the Hosts tab.
B.3.3 Create LUNs and configure host access
1. In the Unisphere left pane under STORAGE, select Block
2. On the LUNs tab, click the (+) icon to open the Create LUNs dialog box.
3. On the Configure LUN(s) page, select the Number of LUNs.
4. Provide a name in the field provided, then select the Storage Pool.
5. From the Size section, make the required modifications, then click Next.
6. On the Access page, click the (+) icon and the select host(s) to be granted access to the LUN.
7. Click OK, then click Next.
8. On the Snapshot page, leave settings at their defaults and click Next.
9. On the Replication page, leave settings at their defaults and click Next.
