117 Dell EMC PowerEdge MX SmartFabric Configuration and Troubleshooting Guide
B.2 CNA FCoE port WWPNs
In this example the MX740c server's FCoE adapter World Wide Port Names (WWPNs) are used for FC
connection configuration. Adapter WWPNs are determined as follows:
1. Connect to the first server's iDRAC in a web browser and log in.
2. Select System, then click Network Devices.

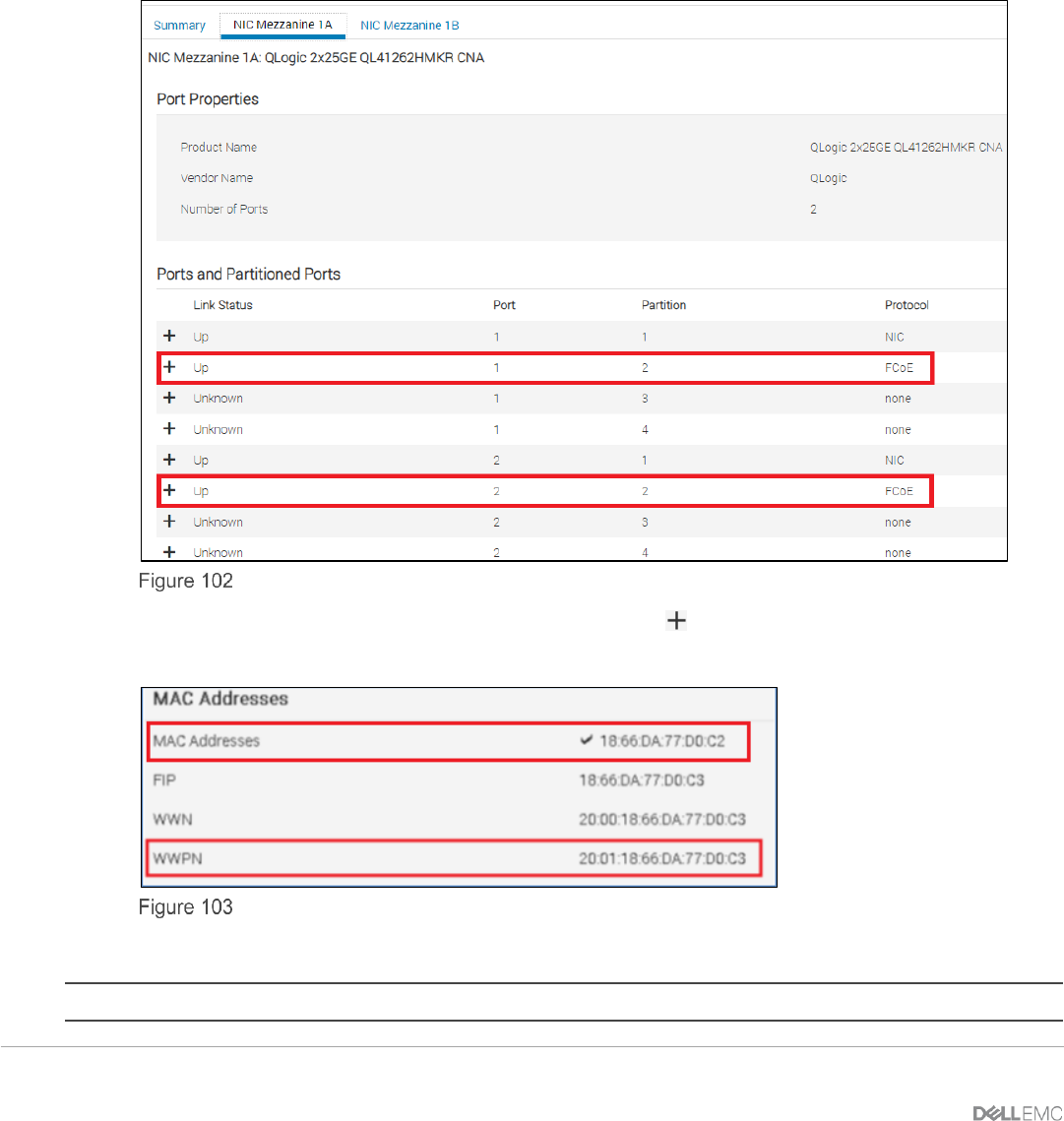

3. Click the CNA. In this example, it is NIC Mezzanine 1A. Under Ports and Partitioned Ports, the
FCoE partition for each port is displayed as shown in Figure 102:
FCoE partitions in iDRAC
4. The first FCoE partition is Port 1, Partition 2. Click the icon to view the MAC Addresses as
shown in Figure 103:
MAC address and FCoE WWPN for CNA port 1
5.
Record the MAC Address and WWPN, outlined in red above.
Note: A convenient method is to copy and paste these values into a text file.
