115 Dell EMC PowerEdge MX SmartFabric Configuration and Troubleshooting Guide
Provides up to 64 ports of 100GbE QSFP28 or up to 128 ports of 1/10/25/40/50GbE ports using breakout
cables. This switch may be used as a leaf or spine switch in a Leaf-spine topology.

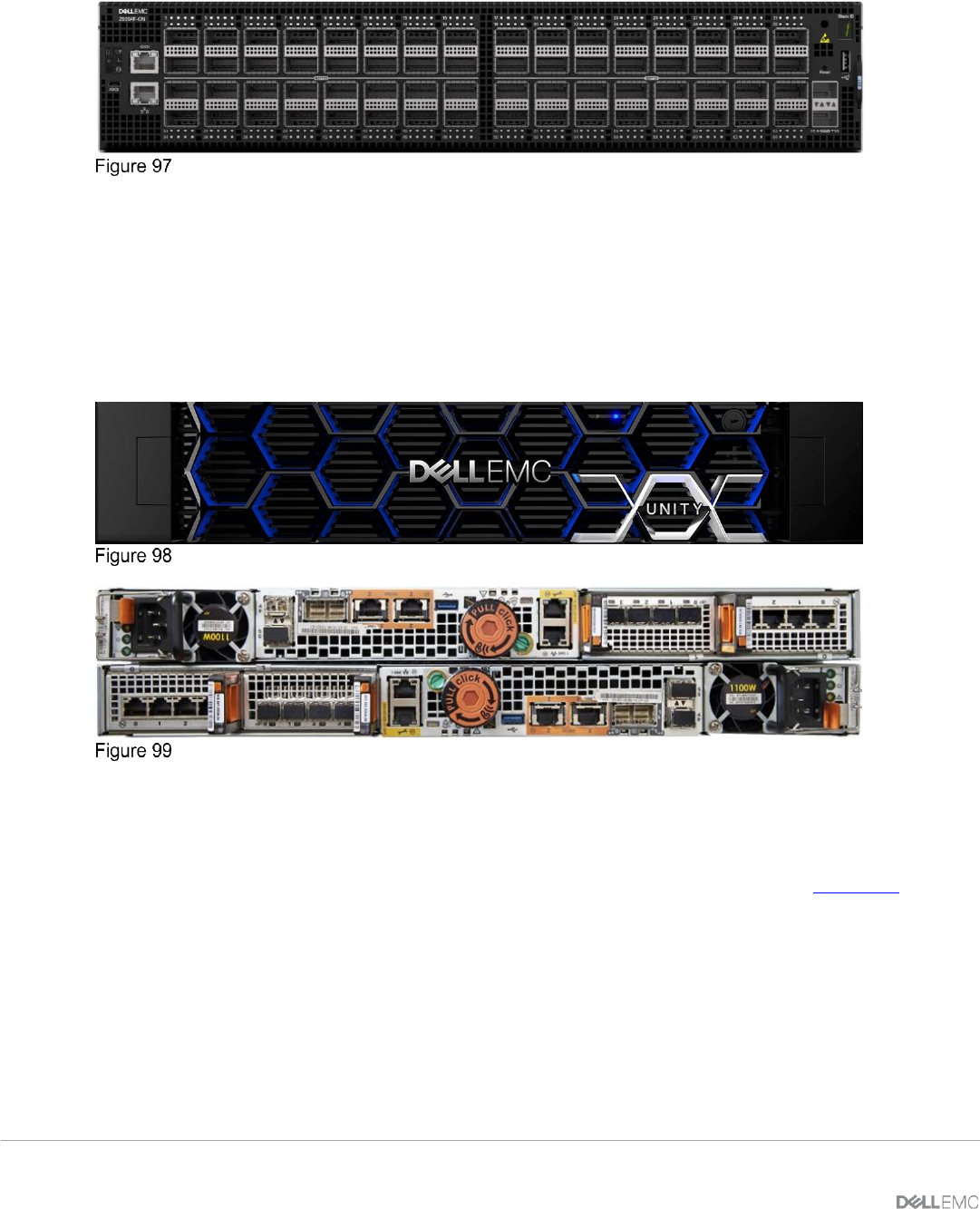

Dell EMC PowerSwitch Z9264F-ON
A.5 Dell EMC Unity 500F storage array
The Unity 500F storage platform delivers all-flash storage with up to 8PB raw capacity. It has concurrent
support for NAS, iSCSI, and FC protocols. The Disk Processing Enclosure (DPE) has a 2-RU form factor,
redundant Storage Processors (SPs), and supports up to twenty-five 2.5" drives. Additional 2-RU Disk Array
Enclosures (DAEs) may be added providing twenty-five additional drives each. This array is used for the FC
connections in this document.
Dell EMC Unity 500F front view
Dell EMC Unity 500F rear view
A.6 Cisco Nexus 3232C
The Cisco Nexus 3232C is a 1-RU fixed form-factor 100GbE switch with thirty-two QSFP28 ports supporting
10/25/40/50/100GbE. A pair of Cisco Nexus 3232C switches are used as leaf switches in Scenario 2 in this
guide.
