14. Click Back and select Back to go to Main Configuration Page.
15. Select NIC Configuration, then set the Boot Protocol to UEFI FCoE, and then click Back.

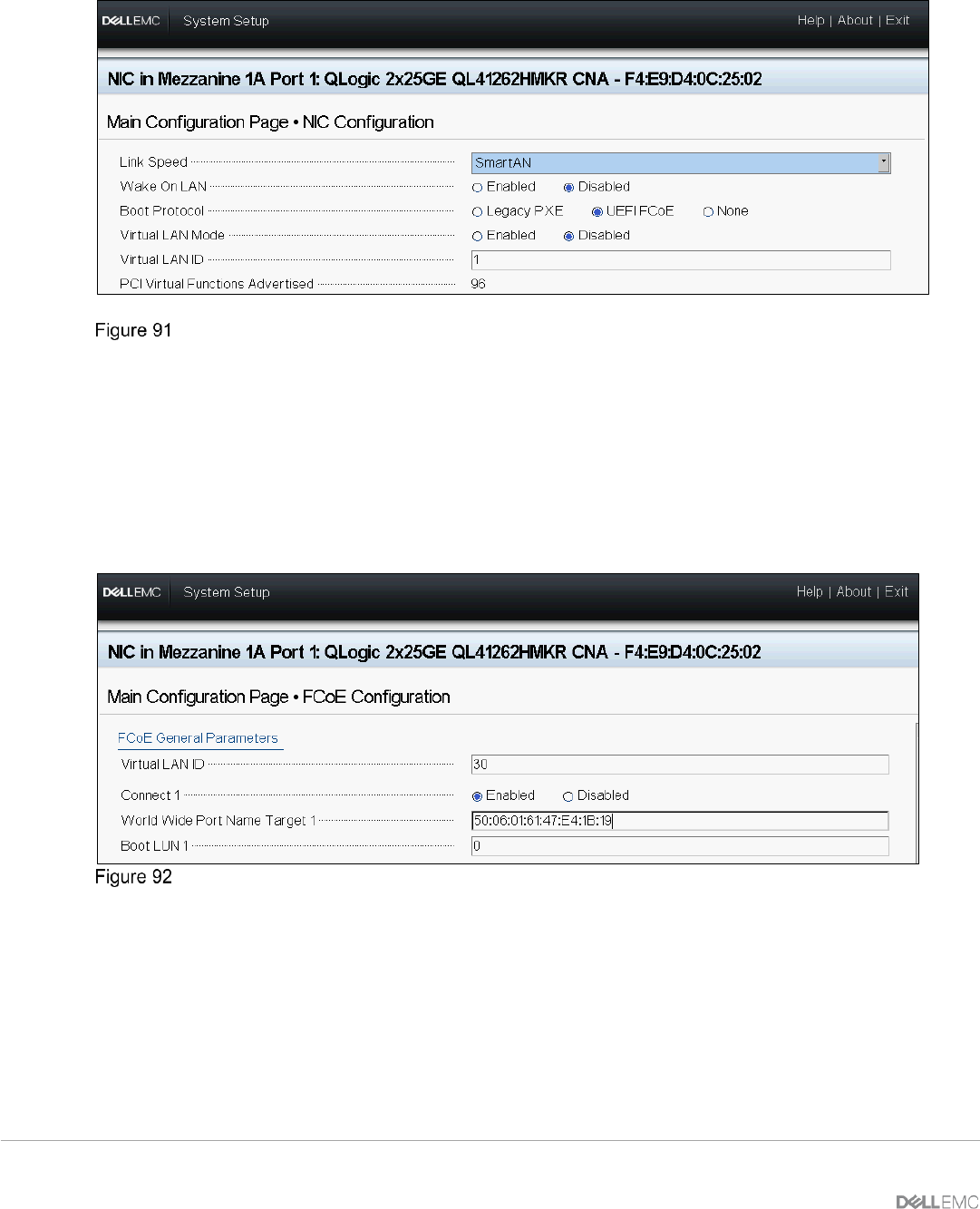

Set the value of Boot Protocol to UEFI FCoE
16. If present, select Partition 3 Configuration in NIC Partitioning Configuration. Set all modes to
Disabled and then click Back.
17. If present, select Partition 4 Configuration in NIC Partitioning Configuration. Set all modes to
Disabled and then click Back.
18. Select FCoE Configuration.
19. Set the Virtual LAN ID (30 is used in this example).
20. Set Connect 1 to Enabled.
21. Set the World Wide Port Name Target 1 to the connected port on Unity.
FCoE configuration
22. Click Back and then click Finish.
23. When prompted, answer Yes to save changes and click OK in the Success window
24. Select the second CNA port and repeat the steps in this section for port 2.
25. Click Finish to exit to the System Setup Main Menu.
10.6.2 Configure BIOS settings
To allow boot from SAN, perform the following steps in the system BIOS settings to disable the PXE BIOS.
1. Select System BIOS from the System Setup Main Menu.
