4. On the System Setup Main Menu, select Device Settings.
5. Select the first CNA port.
6. Select Device Level Configuration.
7. Set Virtualization Mode to NPAR (if not already set), and click Back.

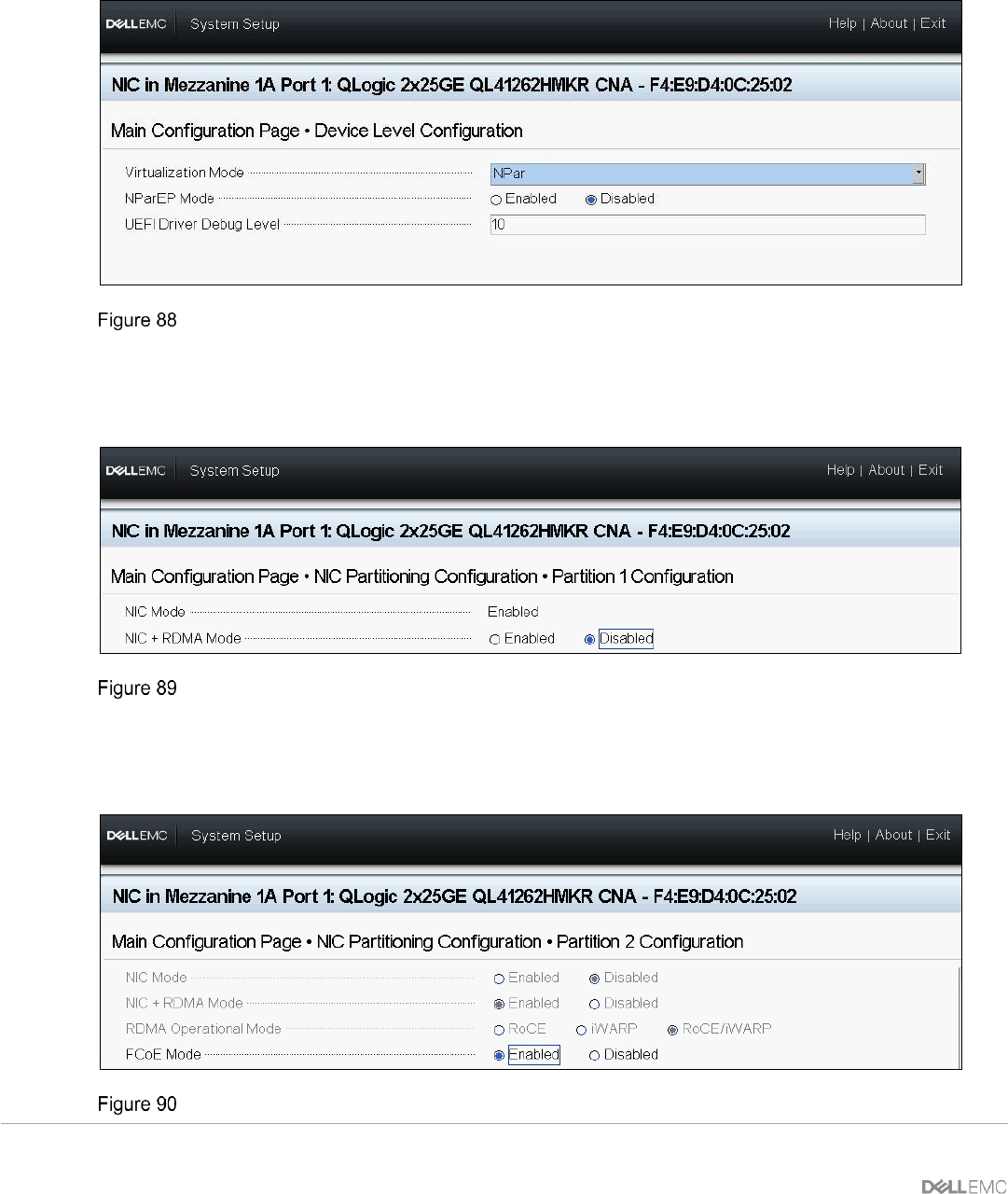

Virtualization Mode to NPAR
8. Choose NIC Partitioning Configuration.
9. Select Partition 1 Configuration.
10. Set NIC + RDMA Mode to Disabled.
Set the value of NIC + RDMA mode
11. Click Back to return.
12. Select Partition 2 Configuration.
13. Set FCoE Mode to Enabled as shown.
FCoE mode to Enabled
