107 Dell EMC PowerEdge MX SmartFabric Configuration and Troubleshooting Guide
C140A1# show fc switch
Switch Mode : FPORT
Switch WWN : 10:00:e4:f0:04:6b:04:42
10.5 Scenario 5: Connect MX5108n to Fibre Channel storage - FSB
This chapter provides instructions for connecting either the MX5108n or MX9116n to a Fibre Channel SAN via
native FCoE uplinks. This connection type would be used in an environment where an existing switch such as
the Dell EMC PowerSwitch S4148U has the capability to accept native FCoE and connect to native FC.
Dell EMC SmartFabric OS10 uses a FIP Snooping Bridge (FSB) to detect and manage FCoE traffic and
discovers the following information:
• End nodes (E_Nodes)
• Fibre Channel forwarder (FCF)
• Connections between E_Nodes and FCFs
• Sessions between E_Nodes and FCFs
Using the discovered information, the switch installs ACL entries that provide security and point-to-point link
emulation to ensure that FCoE traffic is handled appropriately.
Note: The examples in this chapter use the Dell EMC Networking MX5108n. The same instructions may also be
applied and used with the MX9116n.

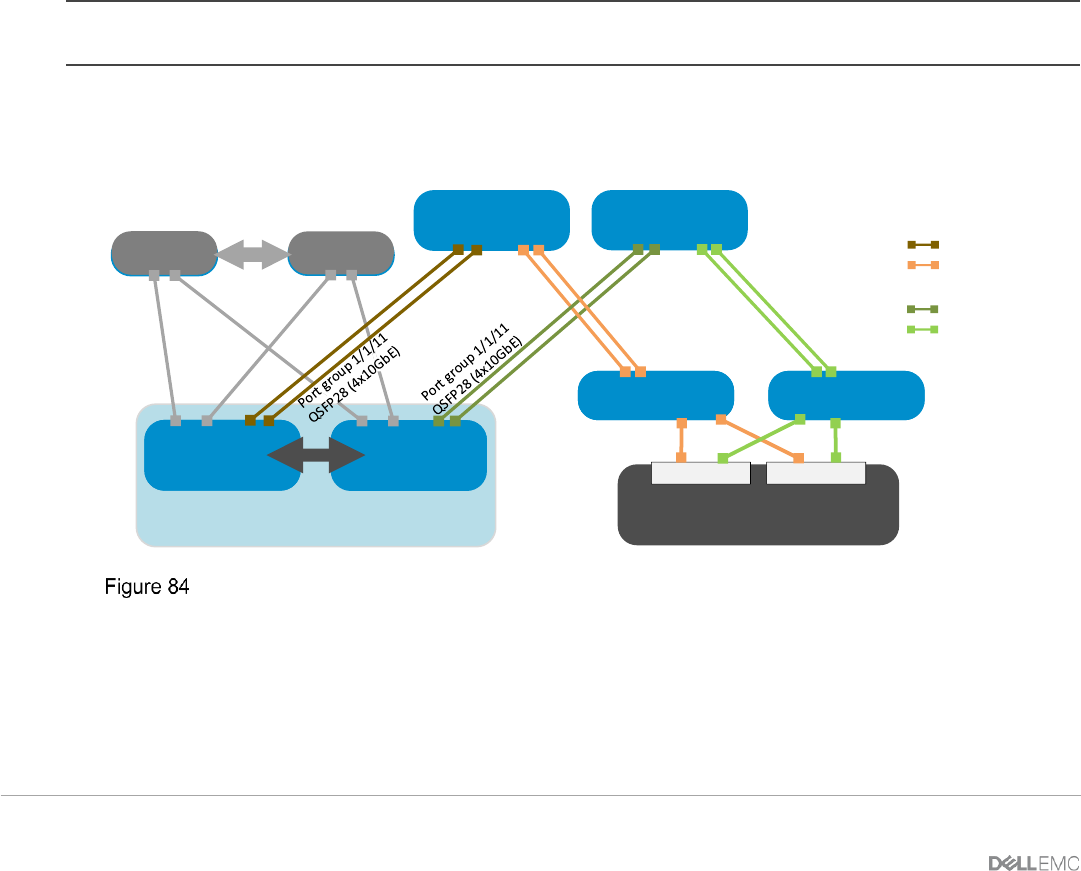

The FSB switch can connect to an upstream switch operating in NPG mode:
S4148U-ON
(NPG mode)
S4148U-ON
(NPG mode)
Unity 500F
MX5108n
FSB mode
(Leaf 2)
MX5108n
FSB mode
(Leaf 1)
VLT
MX7000 chassis
ToR switch 2
ToR switch 1
FC SwitchFC Switch
Unity 500F
Unity 500F
Controller A Controller B
VLT
FC SAN A
FC SAN B
FCoE SAN A
FCoE SAN B
FCoE (FSB) Network to Dell EMC Unity through NPG mode switch
Or operating in F_Port mode:
