Active System Manager for VMware Boot from SAN

9

xv. In the Add vNIC Configuration dialog box, update the following information:

• Name – Hypervisor Management

• Maximum Bandwidth - 10

xvi. In the Select network associated with this configuration area, select the

appropriate hypervisor management network.

xvii. Click OK.

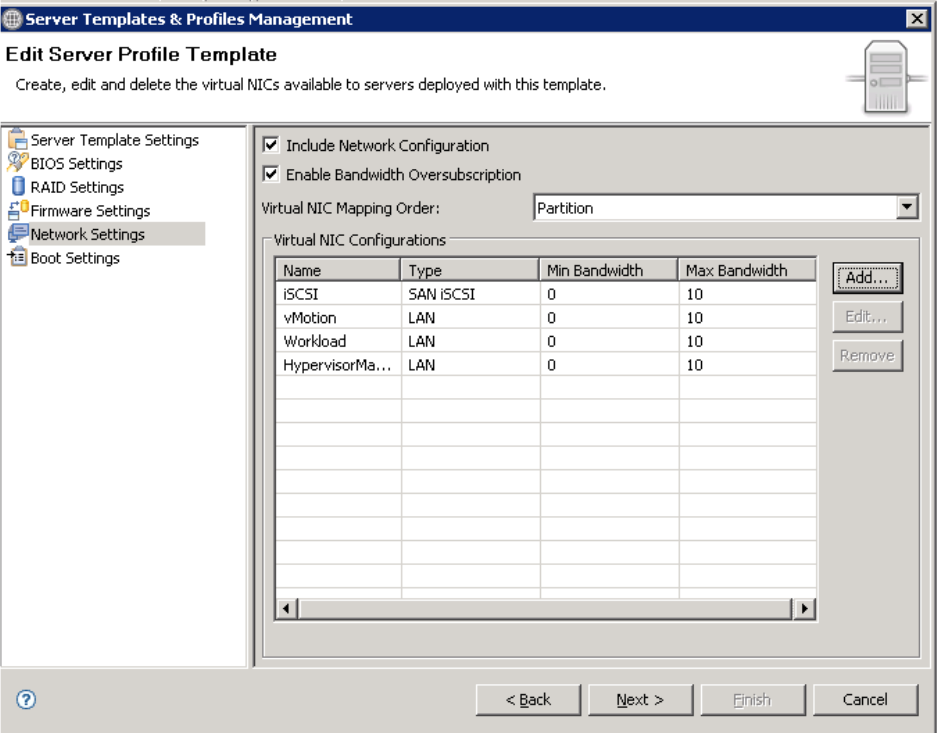

AS800 and AS200 Network Settings page Figure 4.

11. On the Boot Settings page:

• For AS1000, select FC for the OS Boot Type and click Finish.

• For AS800 and AS200, select SAN(iSCSI) for the OS Boot Type, iSCSI for the Virtual

Boot NIC, and click Finish.
