Active System Manager for VMware Boot from SAN

b. Go to Properties



Inventory tab.

c. Select the assettag and in the value section select [CTL+SPACE] and select the

appropriate server.

If PBS is not provided, then Active System Manager will select any available server from the

free pool.

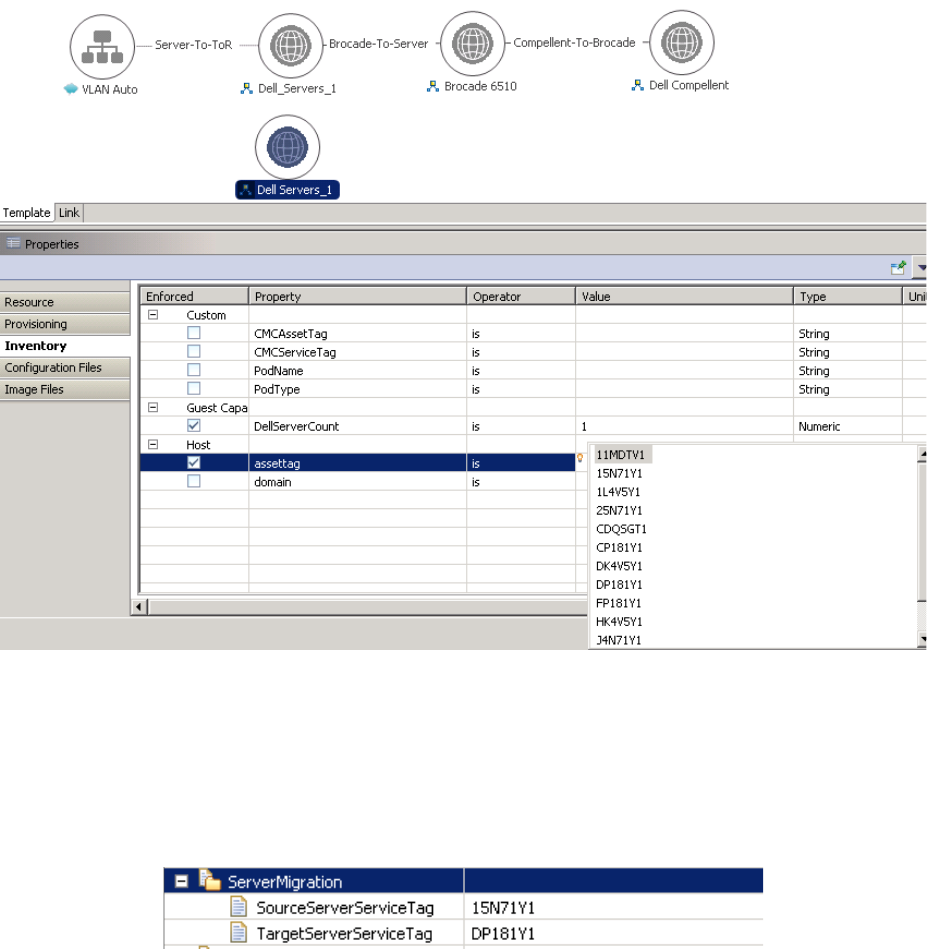

Inventory Figure 7.

3. Update the value of the two new global parameters:

• SourceServerServiceTag – Service Tag of the server that needs to be

replaced/removed.

• TargetServerServiceTag – Service Tag of the server that is newly added to the session.

Added global parameters Figure 8.

Note: The value of the source and target service tag needs to be provided correctly in the

session global parameters before executing the orchestration. The values must be from the

same session otherwise it may impact other sessions and infrastructures too.
