76 Adding and Replacing Parts
www.dell.com | support.dell.com
4
If a modem is not already installed, go to step 5. If you are replacing a modem, remove the
existing modem:
a
Remove the screws securing the modem to the system board, and set them aside.
b
Pull straight up on the attached pull-tab to lift the modem out of its connector on the
system board, and disconnect the modem cable.
5
Connect the modem cable to the modem.
NOTICE: The connectors are keyed to ensure correct insertion. If you feel resistance, check the
connectors and realign the card.
6
Align the modem with the screw holes and press the modem into the connector on the
system board.
7
Install the screws to secure the modem to the system board.
8
Replace the cover.
Mini PCI Card
NOTE: 2.4-GHz Mini PCI cards may be removed and installed by the user.
If you ordered a Mini PCI card with your computer, the card is already installed.

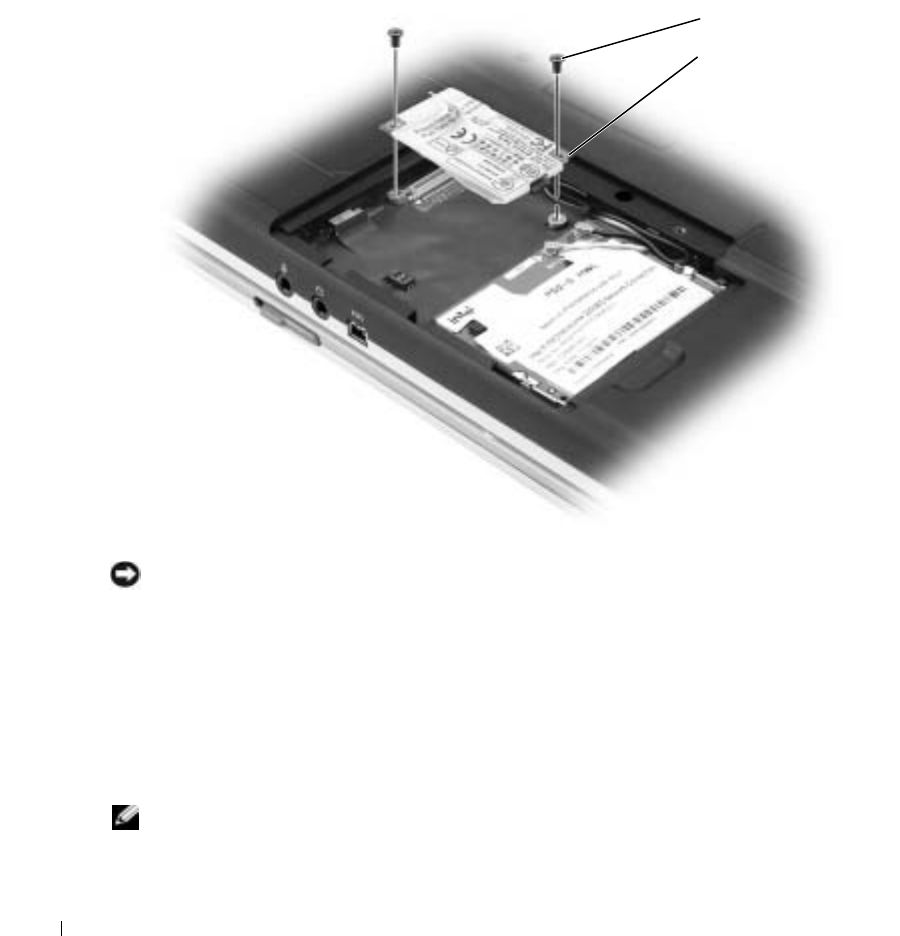

screws (2)
modem
