74 Adding and Replacing Parts
www.dell.com | support.dell.com
NOTICE: To prevent damage to the memory module connector, do not use tools to spread the
memory-module securing clips.
3

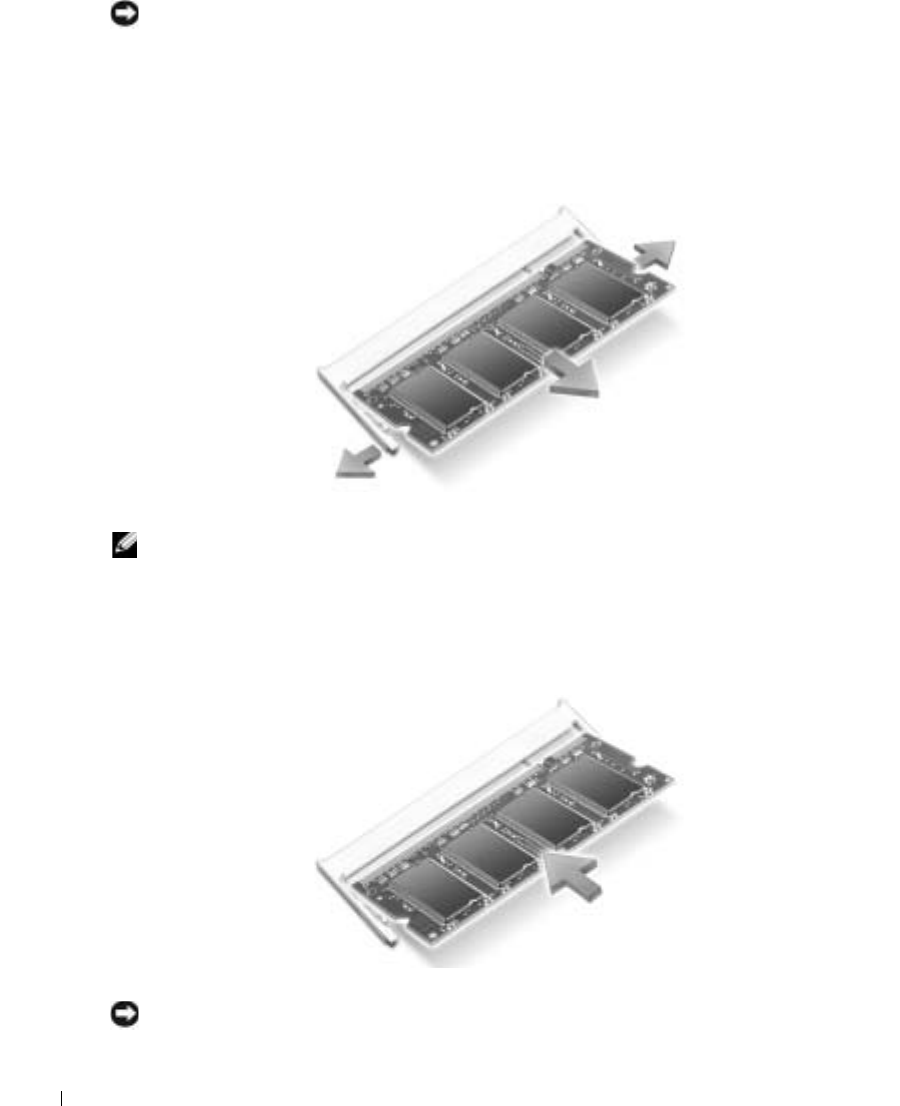

If you are replacing a memory module, remove the existing module:
a
Use your fingertips to carefully spread apart the securing clips on each end of the memory
module connector until the module pops up.
b
Remove the module from the connector.
4
Ground yourself and install the new memory module:
NOTE: If the memory module is not installed properly, the computer may not boot properly. No error
message indicates this failure.
a
Align the notch in the module edge connector with the tab in the connector slot.
b
Slide the module firmly into the slot at a 45-degree angle, and rotate the module down
until it clicks into place. If you do not feel the click, remove the module and reinstall it.
5
Replace the cover.
NOTICE: If the cover is difficult to close, remove the module and reinstall it. Forcing the cover to close
may damage your computer.
